Roof Head Lining: Disassembly

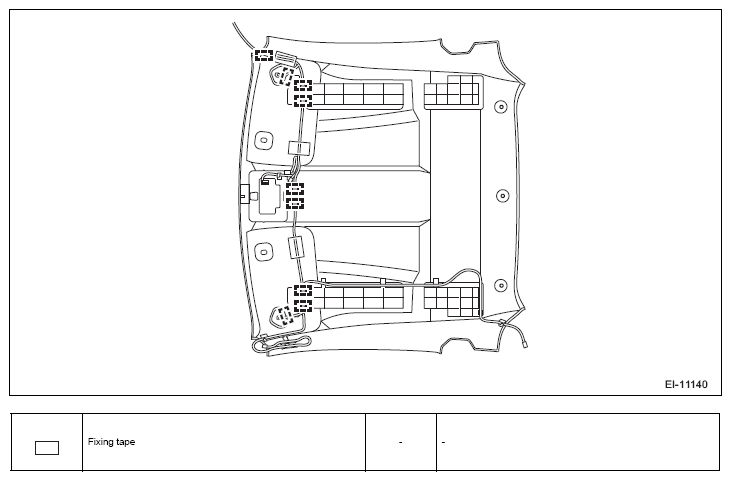

  1. Removal of roof wire NO. 1 (with vanity light)
    1. Remove the fixing tapes.
    2. Release the 2 guides and remove roof wire NO. 1 from the roof head lining ASSY.
      G12594867Courtesy of SUBARU OF AMERICA, INC.

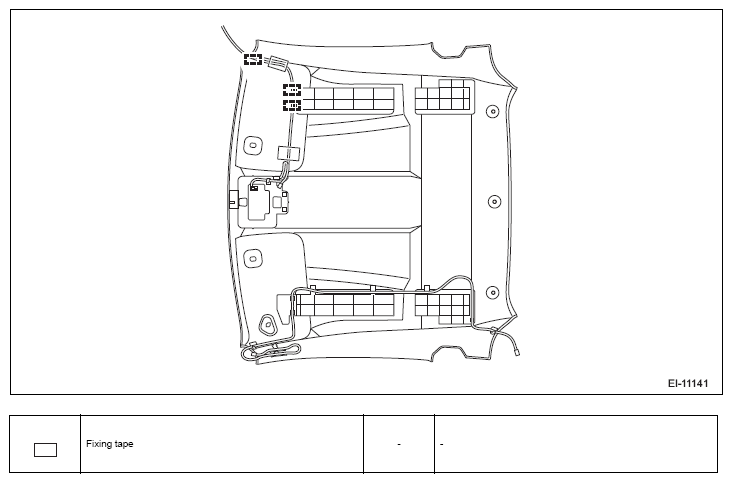

  2. Removal of roof wire NO. 1 (without vanity light)
    1. Remove the fixing tapes.
    2. Release the 2 guides and remove roof wire NO. 1 from the roof head lining ASSY.
      G12594868Courtesy of SUBARU OF AMERICA, INC.
  3. Removal of antenna cord SUB-ASSY NO. 3 (Refer to ANTENNA CORD NO. 2 )
