Roof Head Lining: Assembly

  1. Installation of antenna cord SUB-ASSY NO. 3 (Refer to INSTALLATION )
  2. Installation of roof wire NO. 1

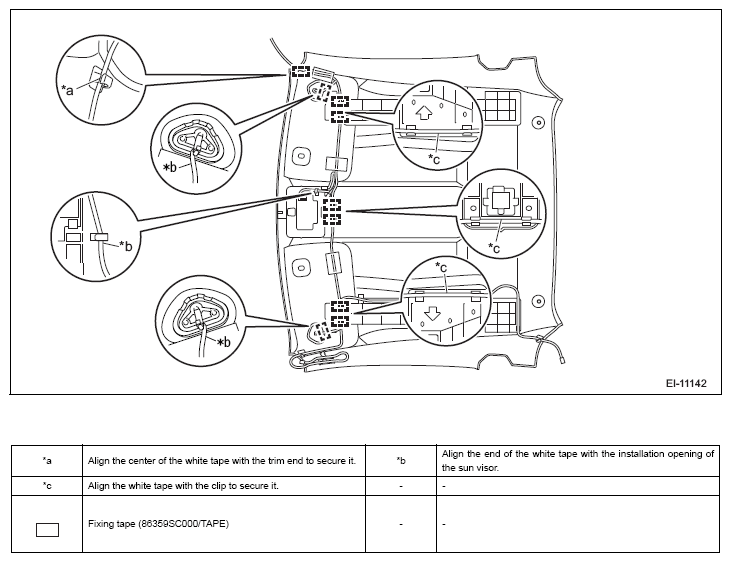

    1. Position roof wire NO. 1 as shown in the figure and install the 2 guides.
      G12594869Courtesy of SUBARU OF AMERICA, INC.
      CAUTION: Do not allow roof wire NO. 1 to be floated or twisted.
    2. Attach the fixing tape and install roof wire NO. 1.
      NOTE: Cut the fixing tape into the necessary size (Recommended: 50 mm x80 mm, 2.0 in x3.2 in) for use.
  3. Installation of roof wire NO. 1 (without vanity light)

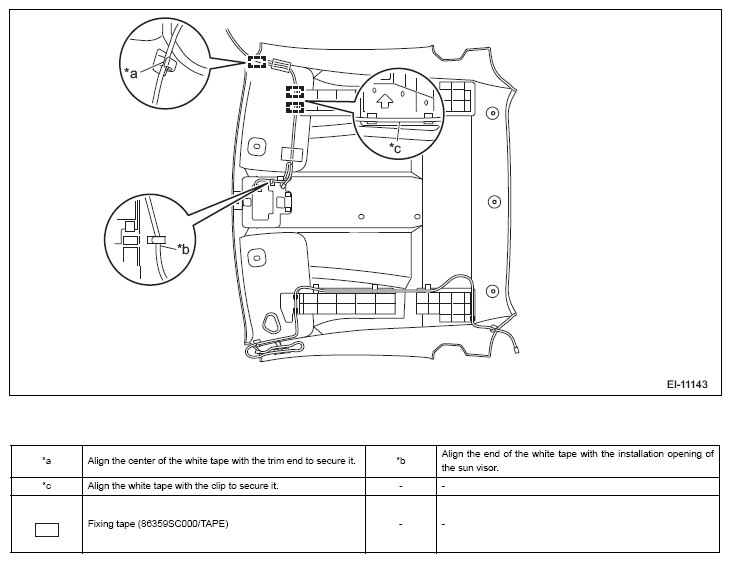

    1. Position roof wire NO. 1 as shown in the figure and install the 2 guides.
      G12594870Courtesy of SUBARU OF AMERICA, INC.
      CAUTION: Do not allow roof wire NO. 1 to be floated or twisted.
    2. Attach the fixing tape and install roof wire NO. 1.
      NOTE: Cut the fixing tape into the necessary size (Recommended: 50 mm x80 mm, 2.0 in x3.2 in) for use.
