Instrument Panel UPR: Disassembly

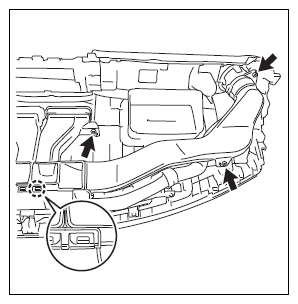

  1. Removal of heater-to-resistor duct NO. 2
    1. Remove the 3 screws.
    2. Release the claw and remove heater-to-resistor duct NO. 2.
      G12594764Courtesy of SUBARU OF AMERICA, INC.
  2. Removal of heater-to-resistor duct NO. 1
    NOTE: Remove the part in the same manner as RH side.

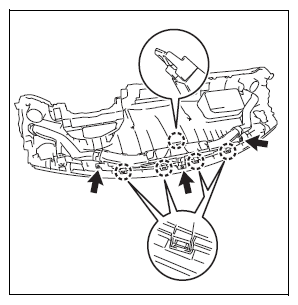

  3. Removal of defroster nozzle ASSY
    1. Remove the 5 screws.
    2. Release the 5 claws and remove the defroster nozzle ASSY as an assembly with side defroster nozzle ducts NO. 1 and NO. 2.
      G12594765Courtesy of SUBARU OF AMERICA, INC.
  4. Removal of side defroster nozzle duct NO. 1
    1. Release the 2 claws and remove side defroster nozzle duct NO. 1.
      G12594766Courtesy of SUBARU OF AMERICA, INC.
  5. Removal of side defroster nozzle duct NO. 2
    NOTE: Remove the part in the same manner as RH side.
  6. Removal of defroster nozzle garnish NO. 2
    1. Release the 2 claws and remove defroster nozzle garnish NO. 2.
      G12594767Courtesy of SUBARU OF AMERICA, INC.
  7. Removal of defroster nozzle garnish NO. 3
    NOTE: Remove the part in the same manner as RH side.
  8. Removal of instrument panel resistor ASSY CTR
    1. Remove the 2 screws.
    2. Release the 2 clips and remove the instrument panel resistor ASSY CTR.
      G12594768Courtesy of SUBARU OF AMERICA, INC.
  9. Removal of instrument panel resistor SUB-ASSY NO. 1
    1. Release the 3 claws and remove instrument panel resistor SUB-ASSY NO. 1.
      G08555471Courtesy of SUBARU OF AMERICA, INC.
  10. Removal of instrument panel resistor bezel (installed on the RH side)
    1. Release the 3 claws and remove the instrument panel resistor bezel.
      G12594770Courtesy of SUBARU OF AMERICA, INC.
  11. Removal of instrument panel resistor SUB-ASSY NO. 2
    NOTE: Remove the part in the same manner as RH side.
  12. Removal of instrument panel resistor bezel (installed on the LH side)
    NOTE: Remove the part in the same manner as RH side.

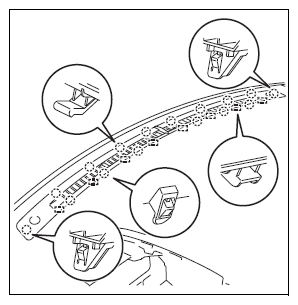

  13. Removal of defroster nozzle garnish NO. 1
    1. Release the 16 claws and 8 guides and remove defroster nozzle garnish NO. 1.
      G12594771Courtesy of SUBARU OF AMERICA, INC.
  14. Removal of instrument panel cushion
    1. Remove the instrument panel cushion.
      CAUTION: Be sure to replace the instrument panel cushion with a new cushion.
      G12594772Courtesy of SUBARU OF AMERICA, INC.
