Exploded View

G08555512Courtesy of SUBARU OF AMERICA, INC.

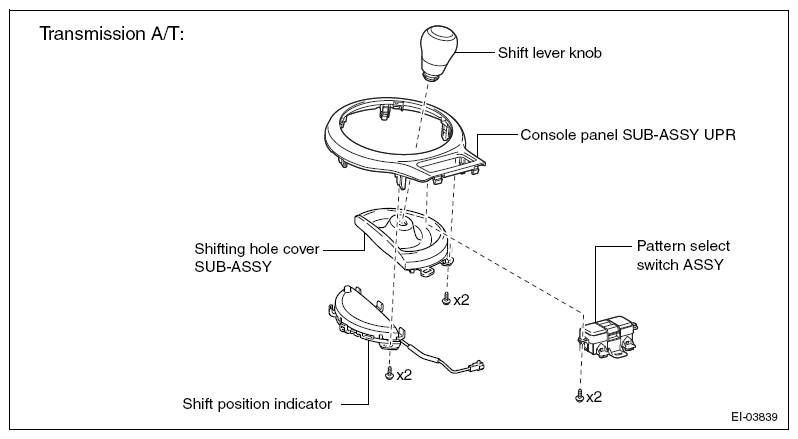

G08555513Courtesy of SUBARU OF AMERICA, INC.
G08555514Courtesy of SUBARU OF AMERICA, INC.

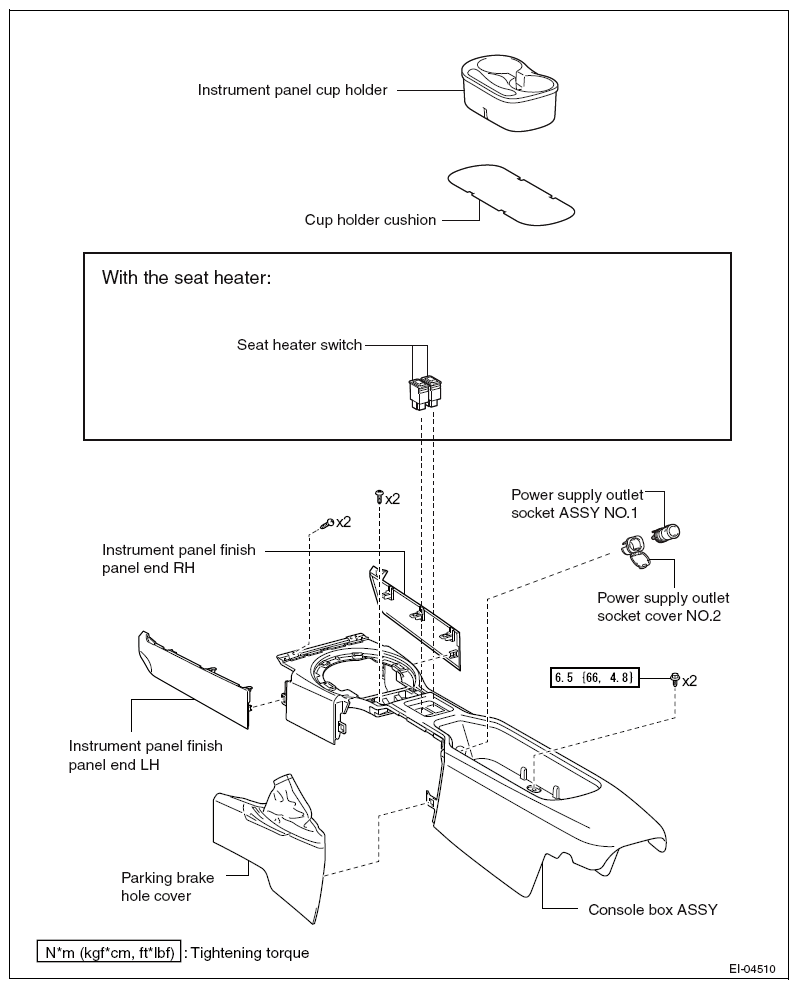

Fig 1: Front Console Box Components With Torque Specification
G10217340Courtesy of SUBARU OF AMERICA, INC.
