Parts location

Courtesy of SUBARU OF AMERICA, INC.

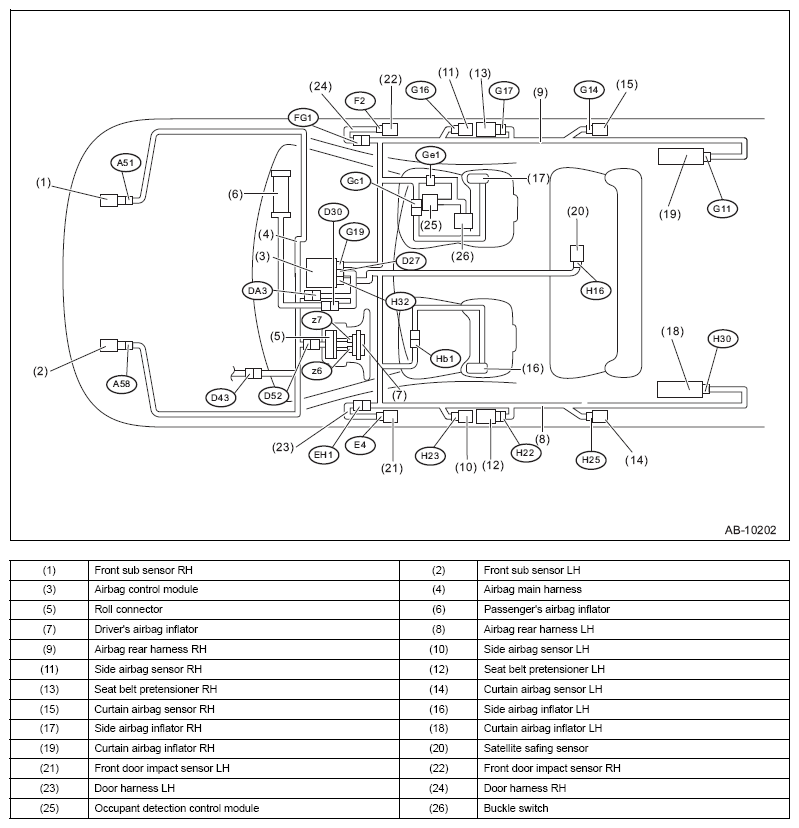

Captions in illustration

Connector No.	D52	D27	D30	A58	A51	H32	G19	Hb1	H22
Pin	4	30	4	2	2	24	24	2	2
Connector color	Yellow	Yellow	Yellow	Yellow	Yellow	Yellow	Yellow	Yellow	Black
Male/Female	Female	Female	Female	Female	Female	Female	Female	Female	Female

Connector No.	H23	Gc1	G17	G16	G11	H25	H30	G14	z6
Pin	4	2	2	4	2	4	2	4	2
Connector color	Yellow	Yellow	Black	Yellow	Black	Yellow	Black	Yellow	Black
Male/Female	Female	Female	Female	Female	Female	Female	Female	Female	Female

Connector No.	E4	EH1	FG1	F2	H16	Ge1	z7
Pin	2	2	2	2	2	3	2

Connector color	Yellow	Yellow	Yellow	Yellow	Yellow	Grey	Orange
Male/Female	Female	Female	Female	Female	Female	Female	Female
