Circuit description

DTC No. DTC detected item Faulty part
B1622
B1623
  • Open or short circuit in harness of side sensor bus RH.
  • Side airbag sensor RH, curtain airbag sensor RH, and front door impact sensor RH are faulty.
  • Airbag control module is faulty.

  • Side airbag sensor RH
  • Curtain airbag sensor RH
  • Airbag control module
  • Airbag rear harness
  • Front door impact sensor RH

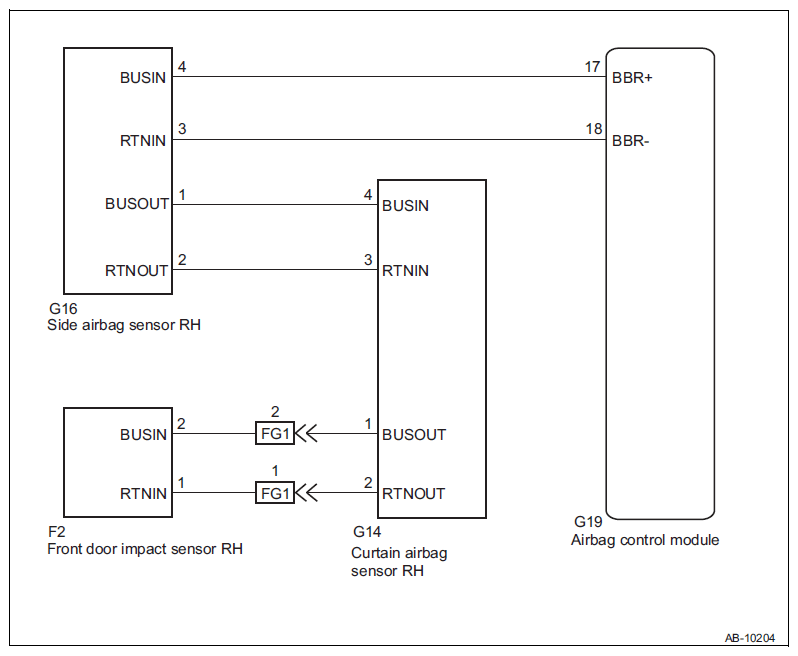

Circuit figure

G11261787Courtesy of SUBARU OF AMERICA, INC.
