On-Vehicle Inspection

Precautions for handling-procedures
CAUTION:
- Do not let brake fluid come into contact with the painted surface of the vehicle. If spilled, wash it off with water and wipe clean quickly.
- Do not reuse drained brake fluid. When refilling, always use new brake fluid.
- To prevent deterioration of brake fluid performance, do not mix different grades of brake fluid (even if they are same brand).
- Do not allow dirt or dust to enter the reservoir tank.
- If a syringe, etc. is used for adjusting the fluid level, make sure that it has not been used for mineral oil, water, or deteriorated brake fluid. It causes deterioration of sealing parts and brake fluid, and fluid leakage and poor brake performance.

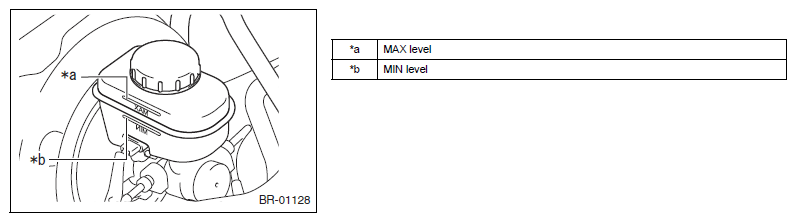

Brake fluid level check

Courtesy of SUBARU OF AMERICA, INC.
1. Check the fluid for discoloration.
2. Check that the brake fluid level is between MIN and MAX.
3. When the brake fluid level is close to MIN, check that there is no leakage from the brake tube or the flexible hose, and then confirm that the brake fluid level was lowered because of the worn brake pad.
4. If the inspection reveals that the fluid is discolored significantly or inadequate for the specified amount, refill or change the brake fluid with new one.
