Reservoir Tank: Removal

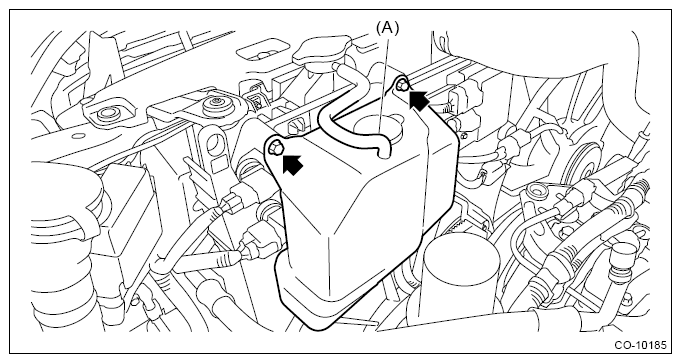

  1. Pull out the over flow hose (A) from the reservoir tank.
  2. Remove the reservoir tank.
    G13199130Courtesy of SUBARU OF AMERICA, INC.
