Front Under Cover: Removal

  1. Lift up the vehicle.
  2. Remove the bolts and clips, and remove the under cover front.

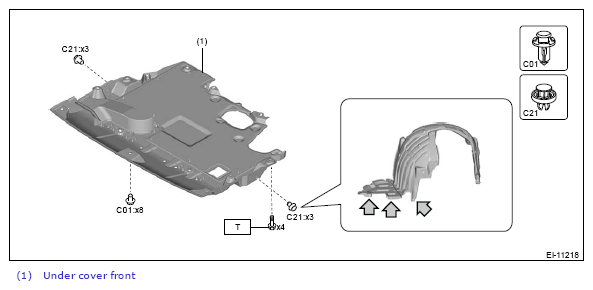

Fig 1: Front Under Cover Bolts And Clips (With Tightening Torque Specification)
G13201512Courtesy of SUBARU OF AMERICA, INC.
