Ground Short Inspection
- MAIN-CAN

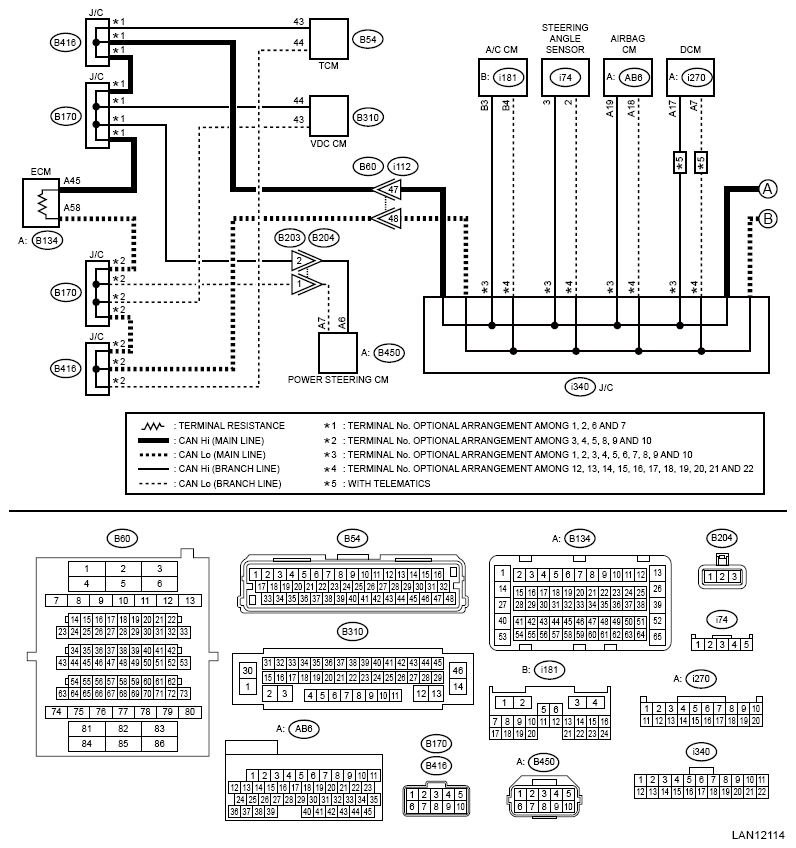

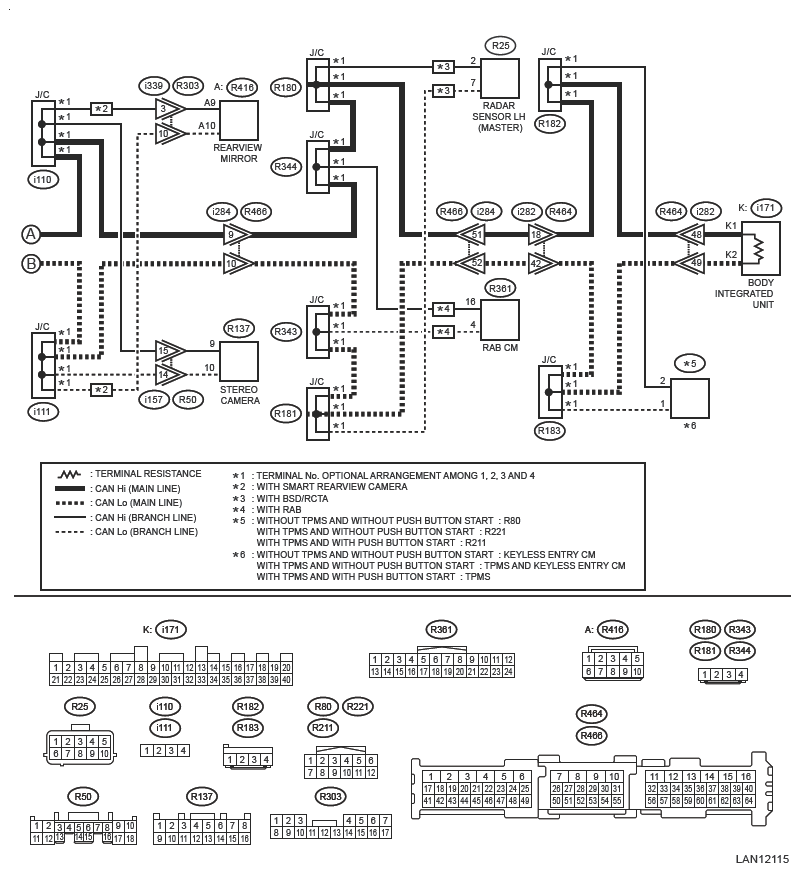

Wiring diagram:
CAN communication system Ref. to WIRING SYSTEM>CAN COMMUNICATION SYSTEM>WIRING DIAGRAM .
- CHECK BETWEEN RELATED LINES AND MAIN WIRING HARNESS.
- Turn the ignition switch to OFF.
- Disconnect the steering sensor connector.
- Using a tester, measure the resistance between the steering sensor connector and chassis ground.
Connector and terminal
(i74) No. 2 - Chassis ground:
(i74) No. 3 - Chassis ground:
Is the resistance less than 10 Ω?
Yes : Go to 2.
No : Currently, it is normal.
- CHECK CONTROL MODULE.
With the tester connected, disconnect control module.
NOTE: Disconnect the body integrated unit at the end.Connector and terminal
(i74) No. 2 - Chassis ground:
(i74) No. 3 - Chassis ground:
Did the resistance change to 10 Ω or more?
Yes : Replace the control module whose resistance has changed. When the value changed at disconnecting the body integrated unit, Go to 3.
No : Repair or replace the short circuit of the main wiring harness and related lines between body integrated unit and ECM.
- CHECK BETWEEN MAIN WIRING HARNESSES.
Measure the resistance between body integrated unit connector and chassis ground using tester.
Connector and terminal
(i171) No. 1 - Chassis ground:
(i171) No. 2 - Chassis ground:
Is the resistance less than 10 Ω?
Yes : Repair or replace the short circuit of the main wiring harness and related lines between ECM - body integrated unit.
No : Replace the body integrated unit. Ref. to SECURITY AND LOCKS>BODY INTEGRATED UNIT>REMOVAL .
- BODY-CAN

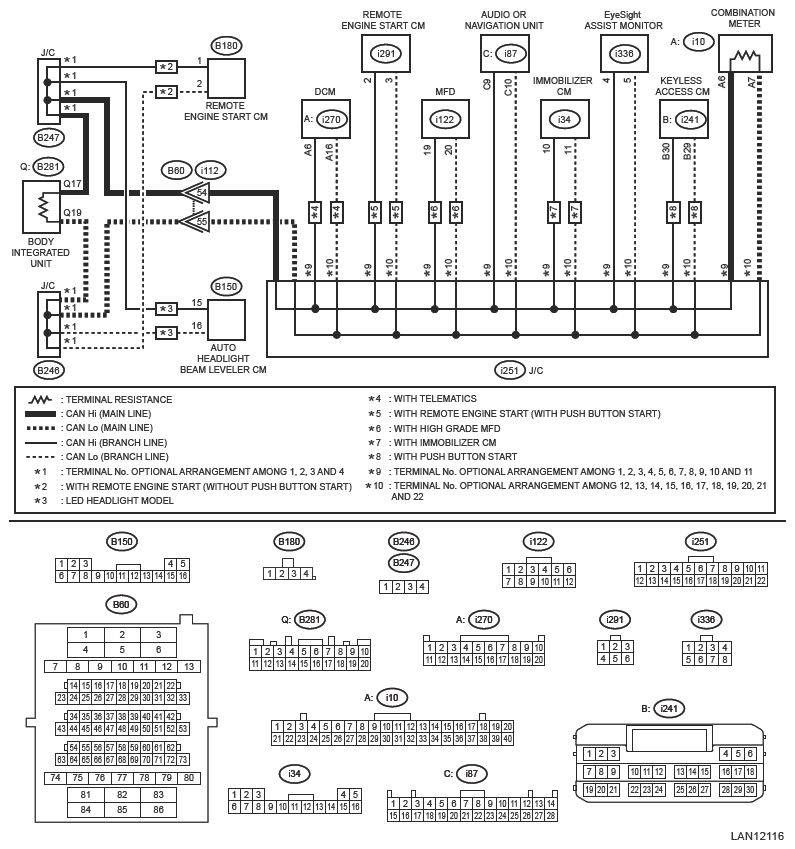

Wiring diagram:
CAN communication system Ref. to WIRING SYSTEM>CAN COMMUNICATION SYSTEM>WIRING DIAGRAM .
- CHECK BETWEEN RELATED LINES AND MAIN WIRING HARNESS.
- Turn the ignition switch to OFF.
- Disconnect the audio or navigation unit connector.
- Using a tester, measure the resistance between audio or navigation unit connector and chassis ground.
Connector and terminal
(i87) No. 9 - Chassis ground:
(i87) No. 10 - Chassis ground:
Is the resistance less than 10 Ω?
Yes : Go to 2.
No : Currently, it is normal.
- CHECK CONTROL MODULE.
With the tester connected, disconnect control module.
NOTE: Disconnect the body integrated unit at the end.Connector and terminal
(i87) No. 9 - Chassis ground:
(i87) No. 10 - Chassis ground:
Did the resistance change to 10 Ω or more?
Yes : Replace the control module whose resistance has changed. When the value changed at disconnecting the body integrated unit, Go to 3.
No : Repair or replace the short circuit of the main wiring harness and related lines between body integrated unit - combination meter.
- CHECK BETWEEN MAIN WIRING HARNESSES.
Measure the resistance between body integrated unit connector and chassis ground using tester.
Connector and terminal
(B281) No. 17 - Chassis ground:
(B281) No. 19 - Chassis ground:
Is the resistance less than 10 Ω?
Yes : Repair or replace the short circuit of the main wiring harness and related lines between combination meter - body integrated unit.
No : Replace the body integrated unit. Ref. to SECURITY AND LOCKS>BODY INTEGRATED UNIT>REMOVAL .
