Oil Catch Tank: Removal

CAUTION:
  • Vehicle components are extremely hot immediately after driving. Be wary of receiving burns from heated parts.
  • If the engine oil is spilt over the engine, exhaust pipe or the under cover, completely wipe it off to avoid emission of smoke or causing a fire.
  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DOTC)>AIR INTAKE DUCT>REMOVAL .
  3. Unlock the blow-by diagnosis connector, and disconnect the PCV hose assembly No. 2 from the PCV hose assembly No. 1.

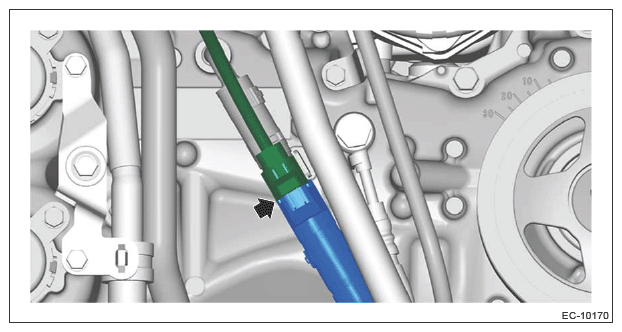

    G13198553Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  5. Disconnect the oil hose from the oil pipe, and drain the engine oil in the oil catch tank.
    NOTE: Prepare the container for draining of engine oil.

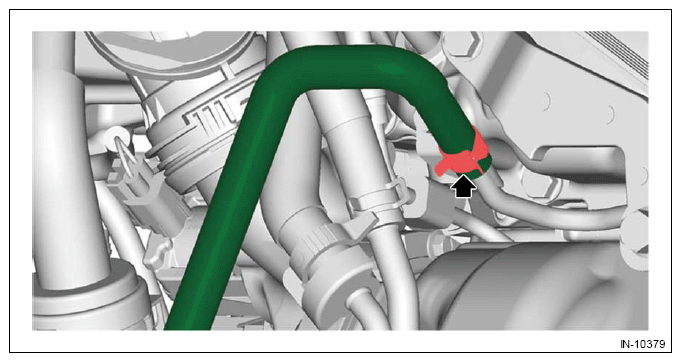

    G13198609Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the oil catch tank cover.

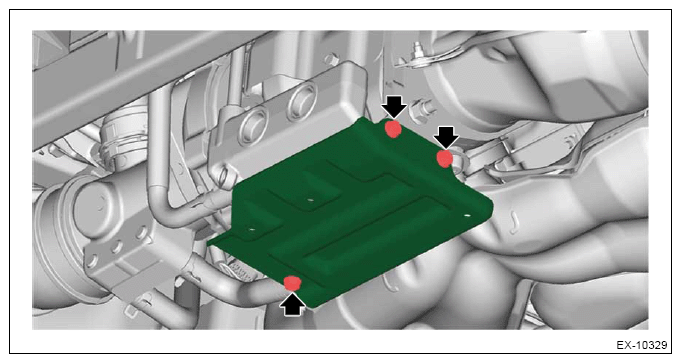

    G13198610Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the oil catch tank.

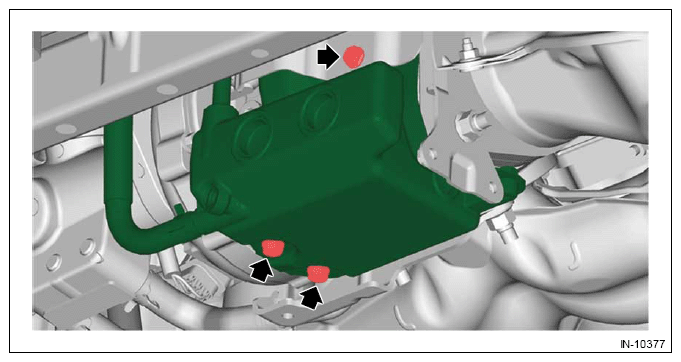

G13198611Courtesy of SUBARU OF AMERICA, INC.
