Air Cleaner Case: Removal

  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DOTC)>AIR INTAKE DUCT>REMOVAL .
  3. Disconnect the connector (A) from the air flow and intake air temperature sensor.
  4. Loosen the clamp (B) of the air intake boot.
  5. Disengage the clip (C), and remove the air cleaner case (rear) and air cleaner element.
    G13198571Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the air cleaner case (front).
    NOTE: The protrusion of the air cleaner case (front) is inserted in the cushion of the air cleaner bracket.

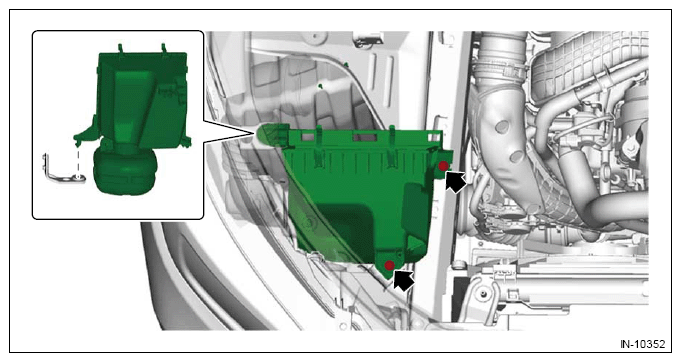

    G13198572Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the air cleaner bracket (A) and the side frame bracket (B).
    G13198573Courtesy of SUBARU OF AMERICA, INC.
