Oil Catch Tank: Disassembly

  1. Remove the PCV hose assembly No. 2. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DOTC)>PCV HOSE ASSEMBLY>REPLACEMENT>PCV HOSE ASSEMBLY NO. 2 .

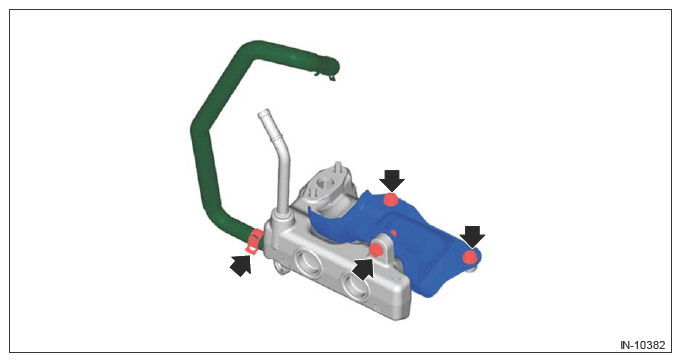

  2. Disconnect the oil hose, and remove the exhaust cover from the oil catch tank.
G13198613Courtesy of SUBARU OF AMERICA, INC.
