Engine Intake System (Induction) And Turbocharger: Intercooler: Removal

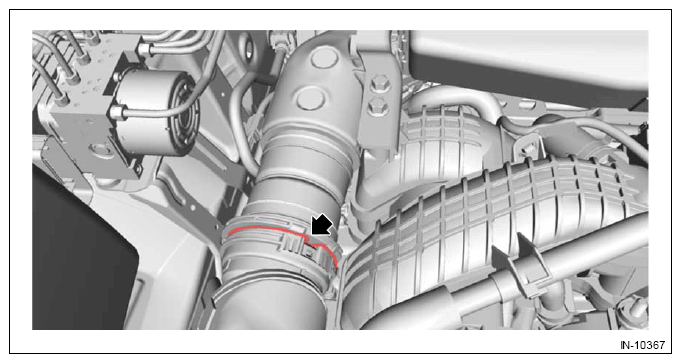

  1. Slide the spring of the intake duct No. 2 to release the lock.
    G13198593Courtesy of SUBARU OF AMERICA, INC.

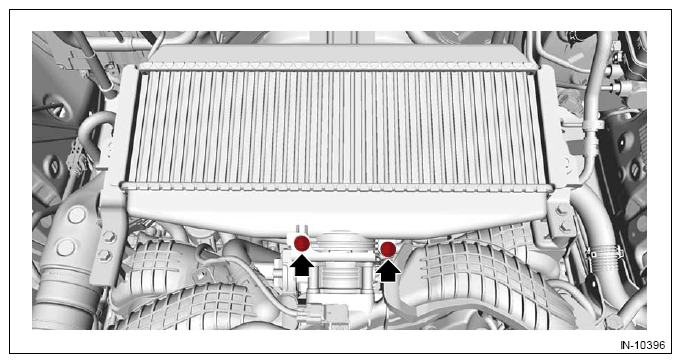

  2. Remove the bolts securing the intercooler from the throttle body.
    G13198594Courtesy of SUBARU OF AMERICA, INC.

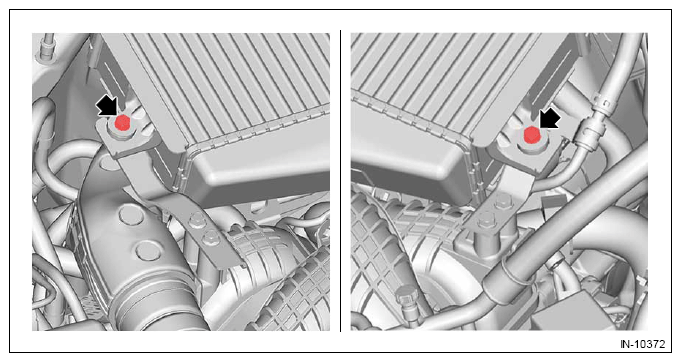

  3. Remove the bolts securing the intercooler from the intercooler stay RH and the intercooler stay LH.
    G13198595Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the intercooler stay RH from the intake manifold assembly.
    G13198596Courtesy of SUBARU OF AMERICA, INC.

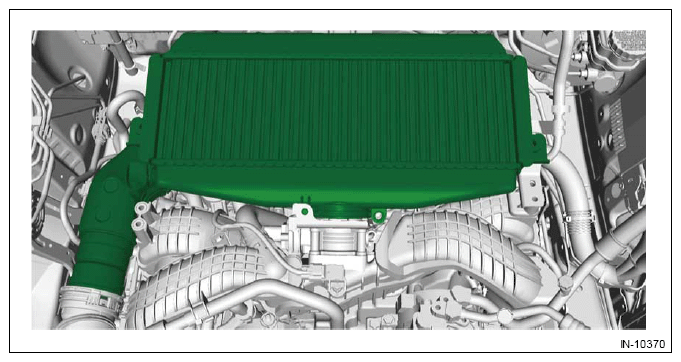

  5. Remove the intercooler and intake duct No. 3 as a unit.
    G13198597Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the bolts which secure the vacuum pipe assembly stay, and remove the intercooler stay LH.
    G13198598Courtesy of SUBARU OF AMERICA, INC.
