Air Cleaner Element: Removal

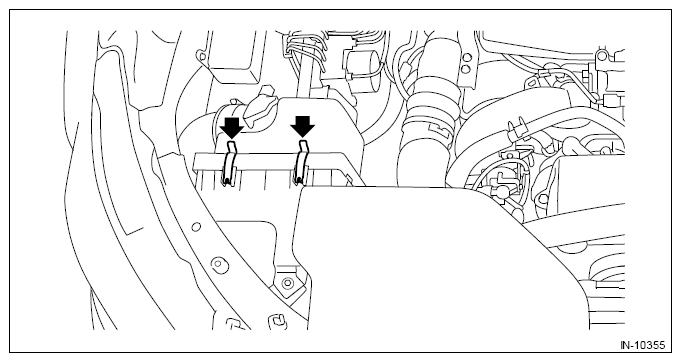

  1. Disengage the clip, and remove the air cleaner element.
    CAUTION: Be sure to lift up the air cleaner case (rear) before releasing the claws on the bottom of the air cleaner case. Otherwise the air cleaner element may be damaged.
G13198569Courtesy of SUBARU OF AMERICA, INC.
