Intake Duct

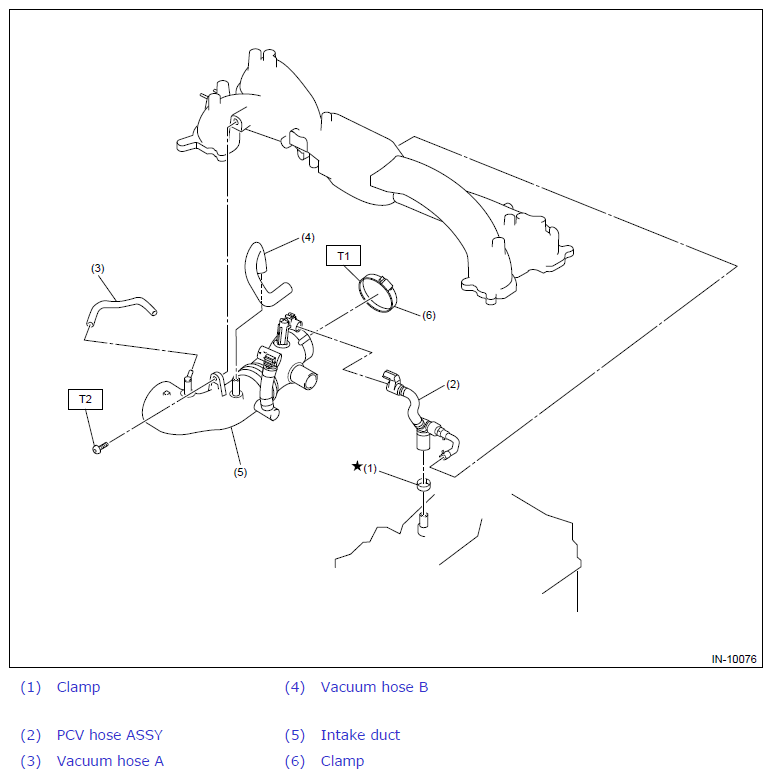

Fig 1: Exploded View Of Intake Duct Components
G12437592Courtesy of SUBARU OF AMERICA, INC.

Tightening Torque: N.m (kgf-m, ft-lb)

T1: 3 (0.3, 2.2)

T2: 17 (1.7, 12.5)
