Shift Lock Control System: Wiring Diagram

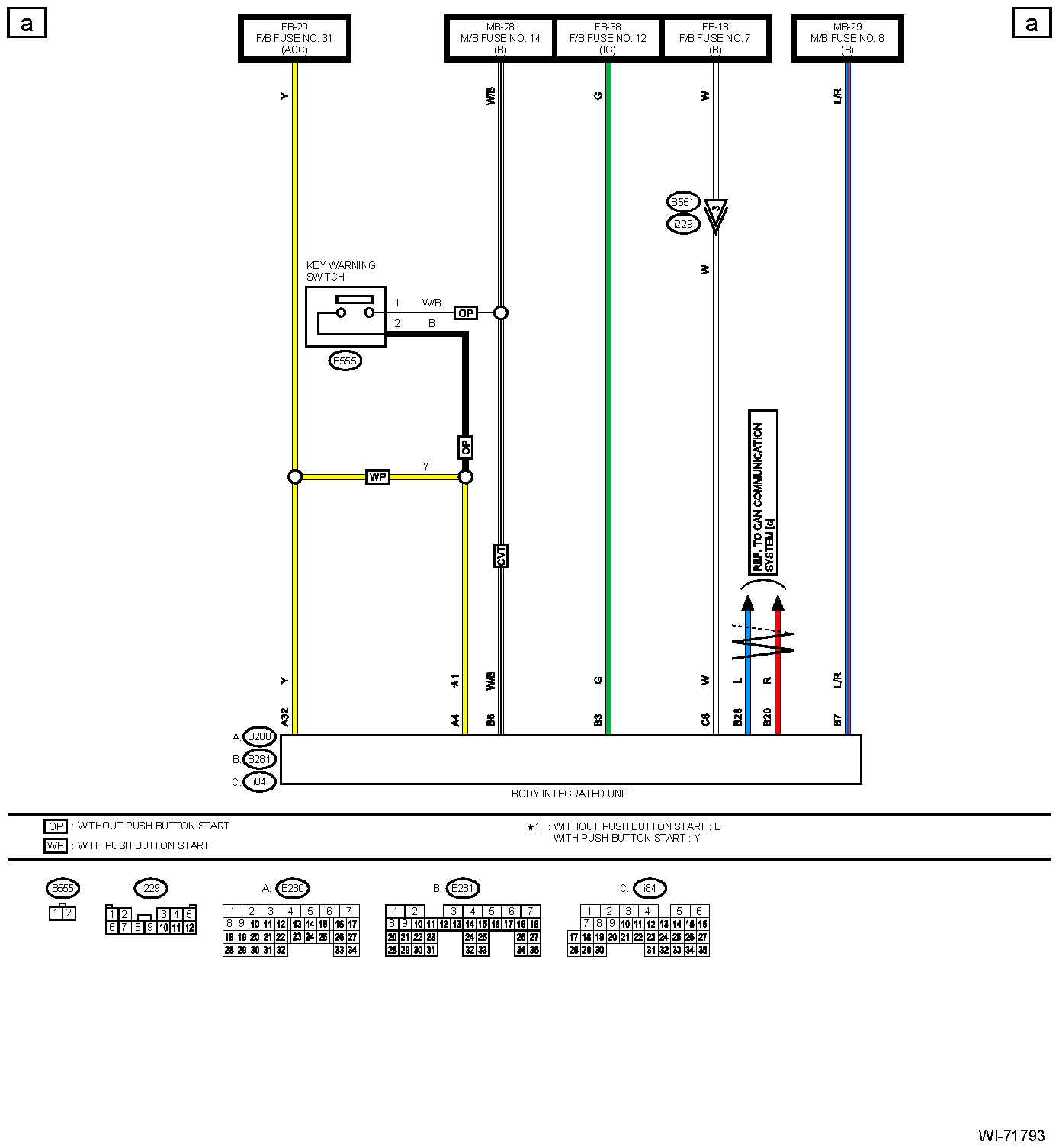

G12456561Courtesy of SUBARU OF AMERICA, INC.
G12456562Courtesy of SUBARU OF AMERICA, INC.
