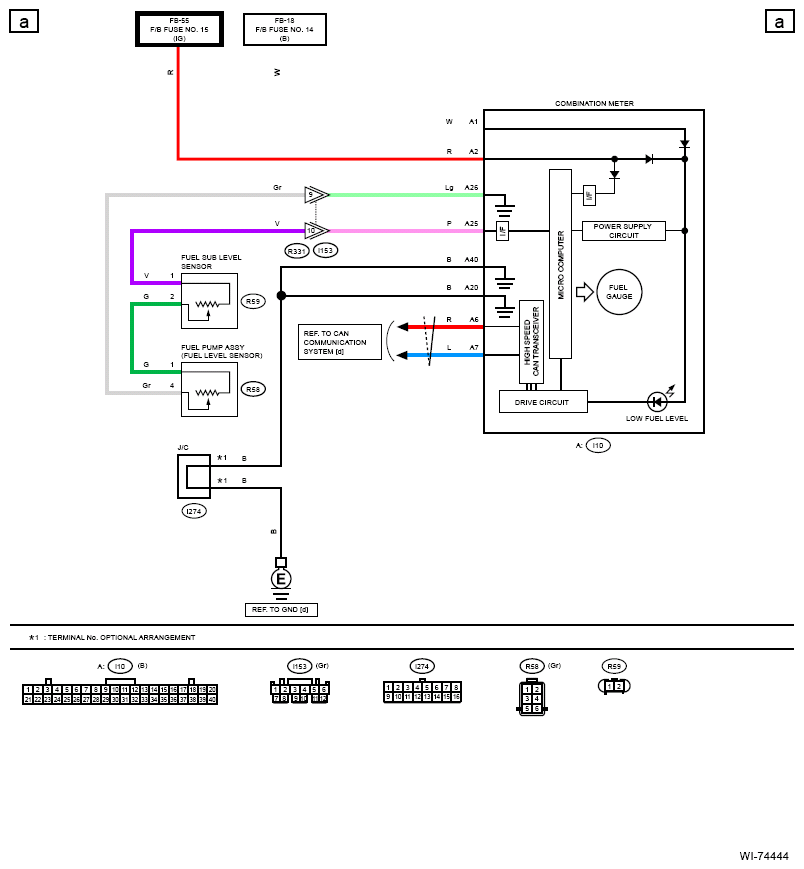

Home >> Subaru >> 2018 >> Outback 2.5i Limited >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations >> Fuel Gauge System >> Wiring Diagram
