CAN Communication System: Wiring Diagram

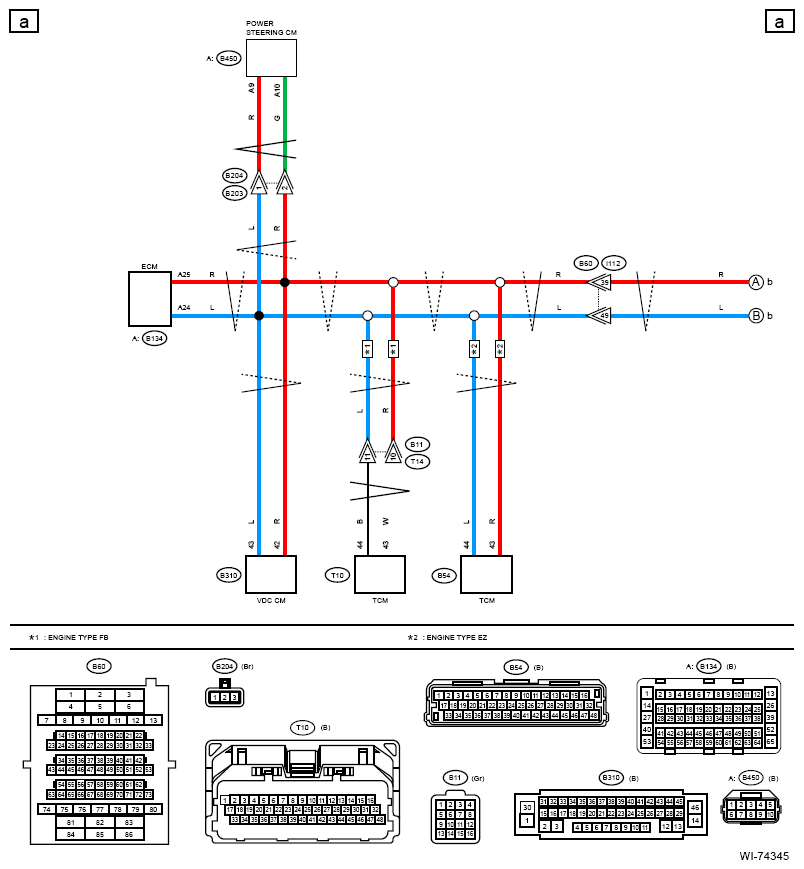

G12409354

Courtesy of SUBARU OF AMERICA, INC.

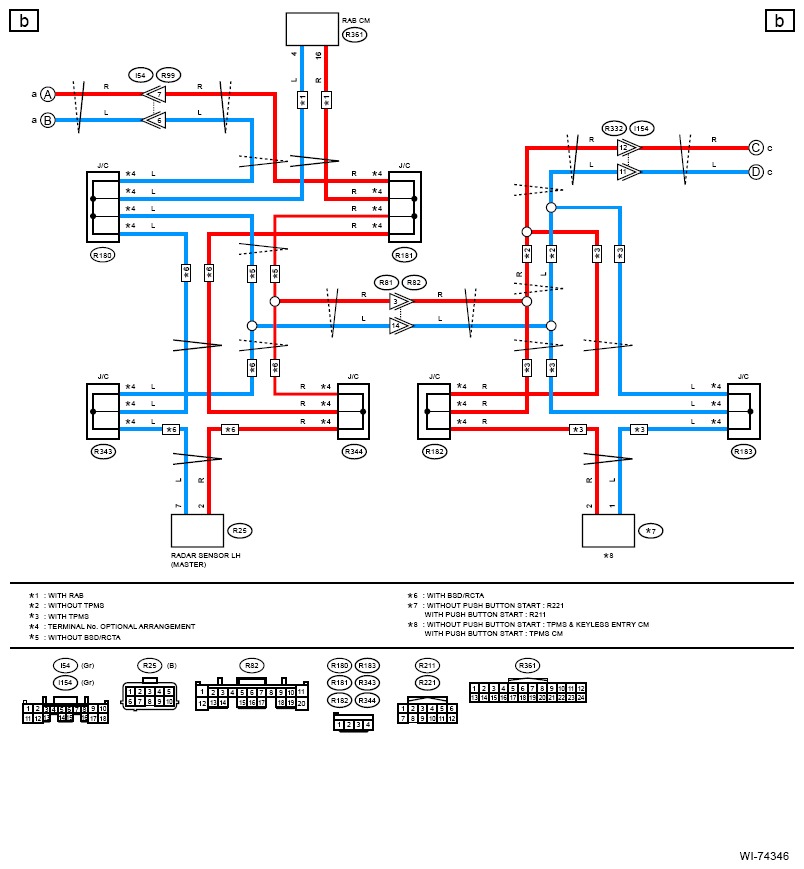

G12409355

Courtesy of SUBARU OF AMERICA, INC.

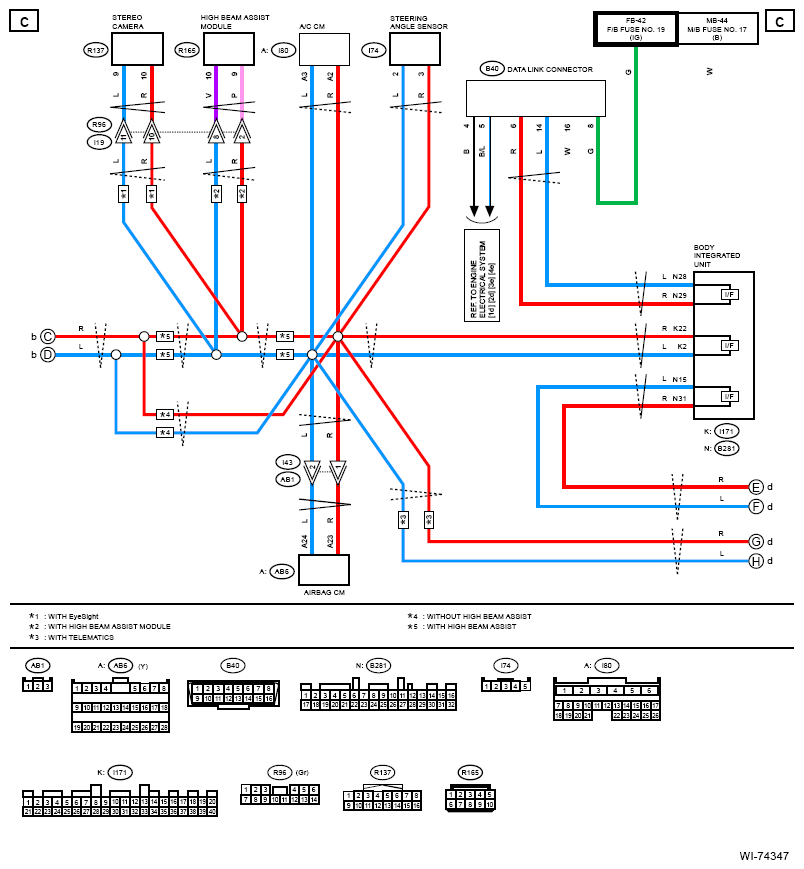

G12409356

Courtesy of SUBARU OF AMERICA, INC.

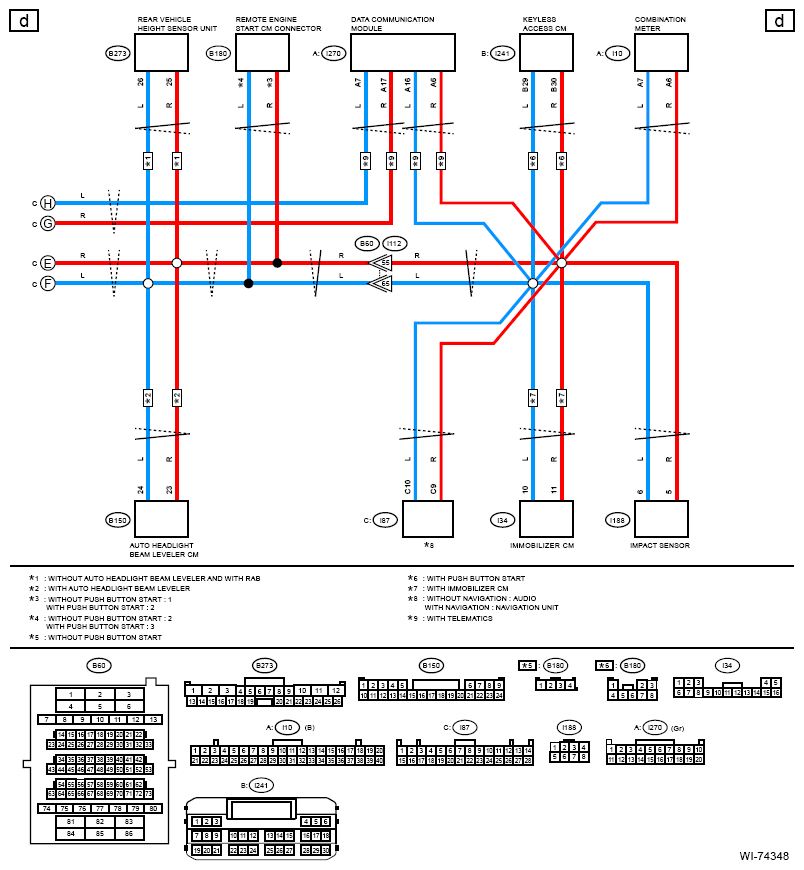

G12409357

Courtesy of SUBARU OF AMERICA, INC.
