Air Cleaner Case: Removal

Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Note.>
Remove the air intake duct. <Ref. to REMOVAL , Air Intake Duct.>
Remove the clip (A) and clip (B) which secure the engine harness and bulkhead harness to the bracket, and remove the bolt which secures the engine control module (ECM) to the bracket.

Fig 1: Locating Engine Harness And Bulkhead Harness Clip
Courtesy of SUBARU OF AMERICA, INC.
Pull out the engine control module (ECM) from the bracket, and move it to a location that does not interfere operation.
NOTE: When performing the pulling out operation, pay attention not to apply excessive load to the breather filter portion

Fig 2: Pulling Out Engine Control Module (ECM) From Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the clips (3 places) which secure the front mud guard RH to the vehicle.

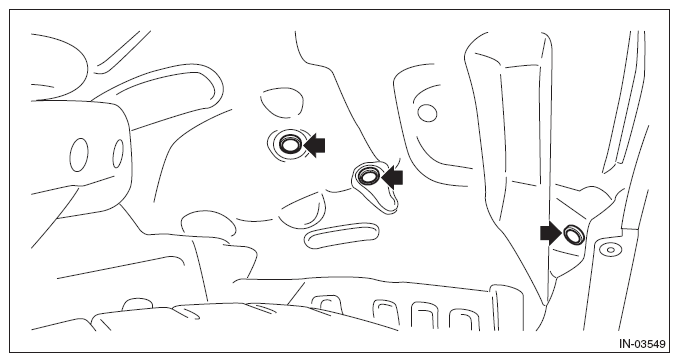

Fig 3: Locating Front Mud Guard RH Clips
Courtesy of SUBARU OF AMERICA, INC.
Turn over the front mud guard RH, and loosen the clamp which secures the air intake boot to the air cleaner case (rear).

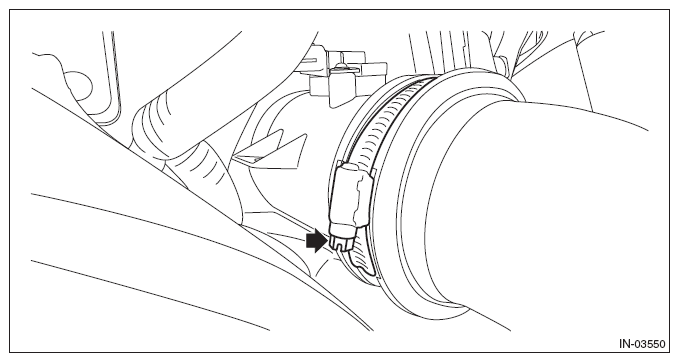

Fig 4: Locating Clamp, Securing Air Intake Boot To Air Cleaner Case
Courtesy of SUBARU OF AMERICA, INC.

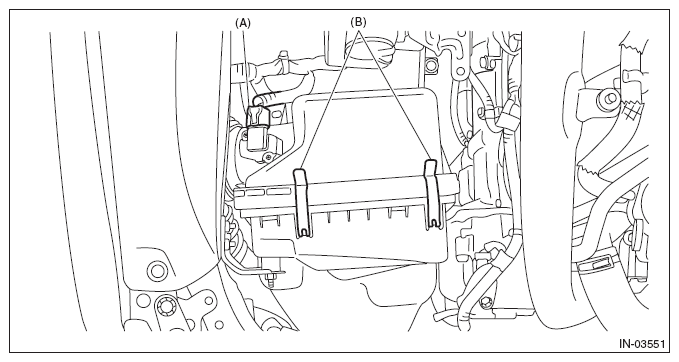

Disconnect the connector (A) from the mass air flow and intake air temperature sensor, and remove the clip (B) from the air cleaner case (rear).

Fig 5: Locating Mass Air Flow And Intake Air Temperature Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove the air cleaner case (rear) and air cleaner element.
Remove bolts (A) and nuts (B) which secure the air cleaner case (front) to the body and air cleaner case bracket, and remove the air cleaner case (front).

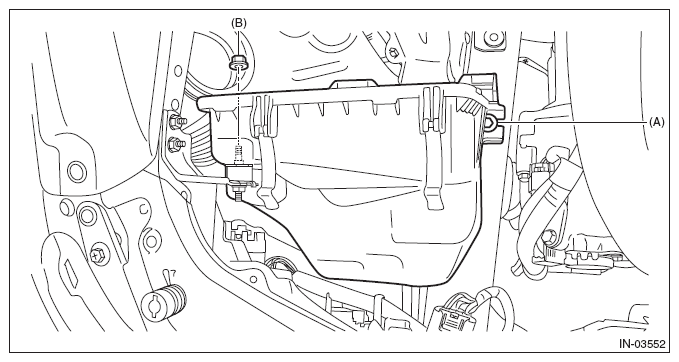

Fig 6: Removing Air Cleaner Case (Front)
Courtesy of SUBARU OF AMERICA, INC.
Remove the air cleaner case bracket from the vehicle.

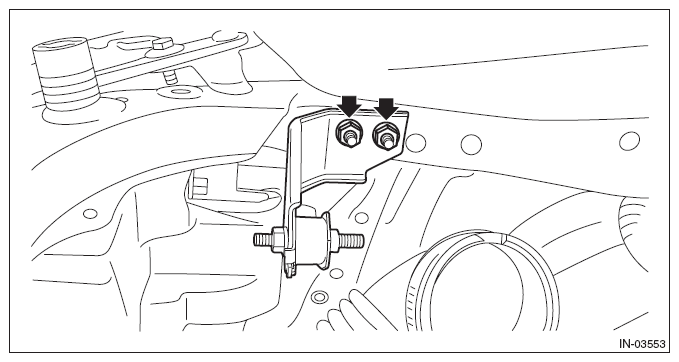

Fig 7: Locating Bolts Of Air Cleaner Case Bracket
