Components With Torque Specifications: Turbocharger

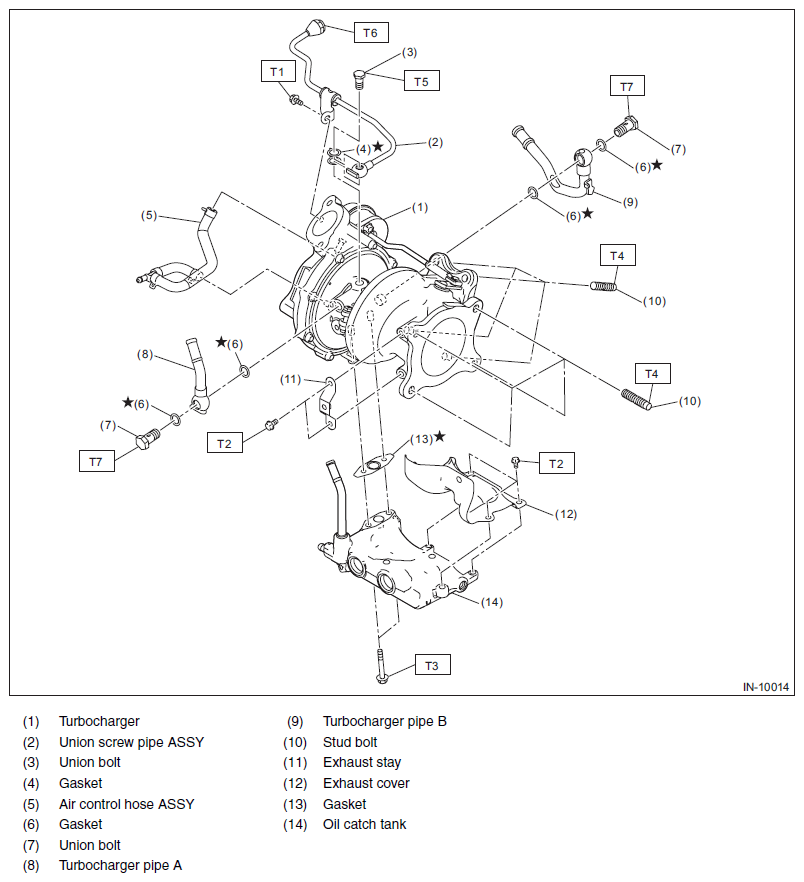

Fig 1: Exploded View Of Turbocharger With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.8 (0.7, 5.1)

T2: 7.15 (0.7, 5.3)

T3: 10.5 (1.1, 7.7)

T4: 14.7 (1.5, 10.8)

T5: 16 (1.6, 11.8)

T6: 20 (2.0, 14.8)

T7: 31.5 (3.2, 23.2)
