Intake Duct

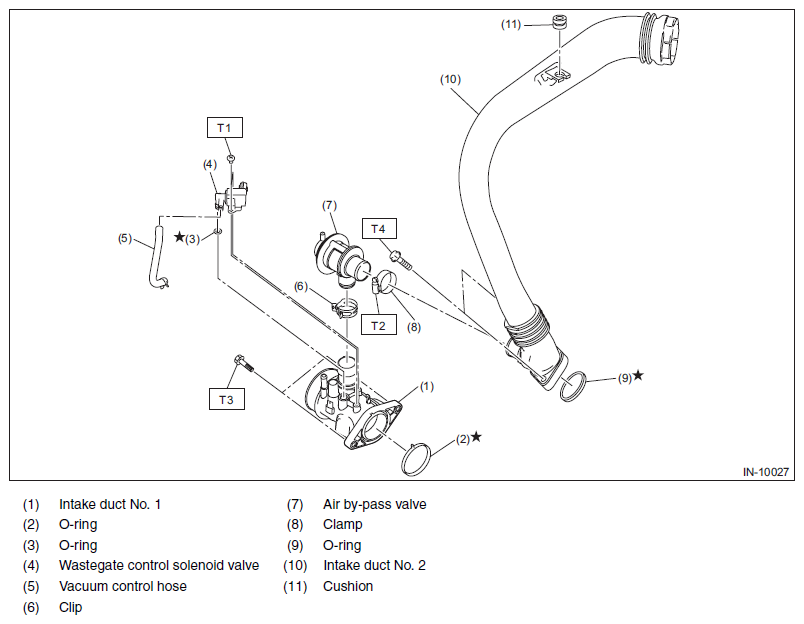

Fig 1: Exploded View Of Intake Duct With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 2.8 (0.3, 2.1)

T2: 3 (0.3, 2.2)

T3: 7.5 (0.8, 5.5)

T4: 16 (1.6, 11.8)
