Components With Torque Specifications: Compressor

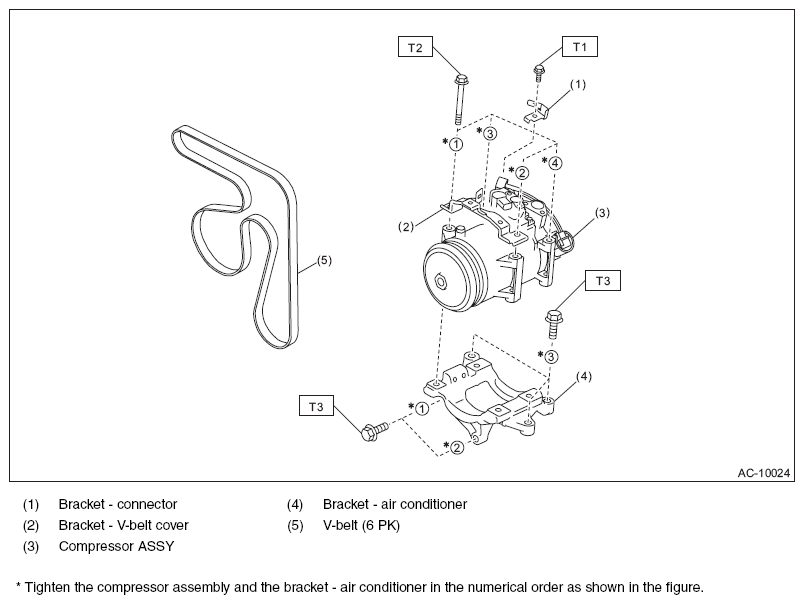

Fig 1: Exploded View Of Compressor Replacement Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 25 (2.5, 18.4)

T3: 36 (3.7, 26.6)

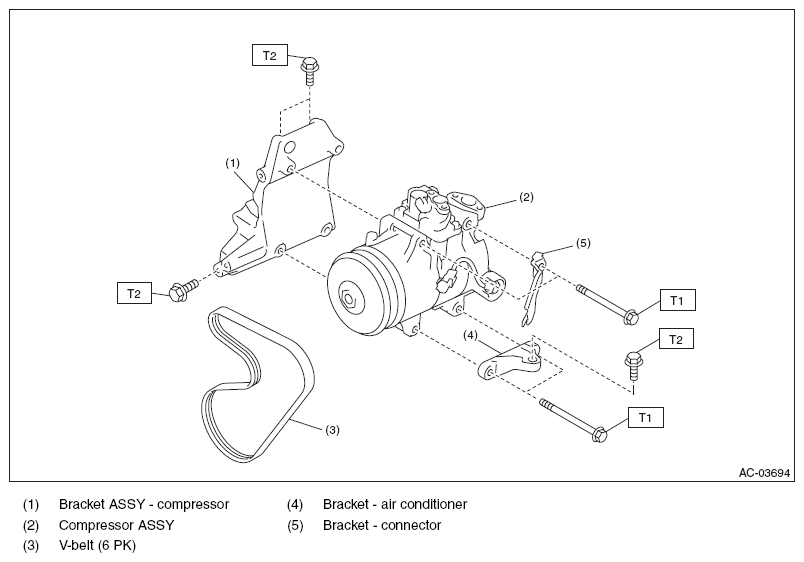

Fig 2: Exploded View Of Compressor Replacement Components (H6 Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 26.5 (2.7, 19.5)

T2: 36 (3.7, 26.6)
