Water Pump Pulley

1. Remove the V-belts. Ref. to REMOVAL , V-belt.
2. Remove the water pump pulley using the ST.

ST1 18355AA000 PULLEY WRENCH

ST2 18334AA030 PULLEY WRENCH PIN SET

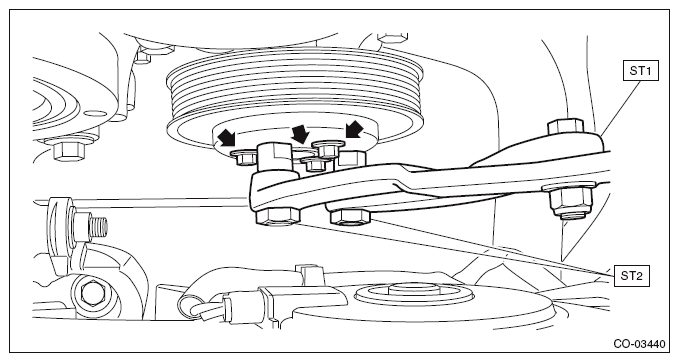

Fig 1: Identifying Water Pump Pulley Bolts

Courtesy of SUBARU OF AMERICA, INC.
