Engine Side

WARNING: This page is about a different variant/trim than selected.

Install a gasket to thermostat.
NOTE: Use a new gasket.
Install the thermostat and thermostat cover.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

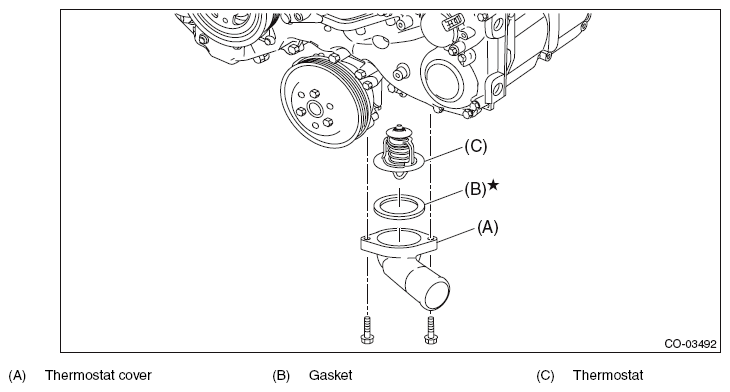

Fig 1: Thermostat Cover, Gasket, Thermostat And Bolts
Courtesy of SUBARU OF AMERICA, INC.
Connect the radiator outlet hose to thermostat cover.
Install the front exhaust pipe. Ref. to INSTALLATION , Front Exhaust Pipe.
Connect the ground terminal to battery sensor. Ref. to BATTERY
NOTE: Repair Contents.
Fill engine coolant. Ref. to FILLING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant.

Fig 2: Identifying Radiator Outlet Hose Clamp

Courtesy of SUBARU OF AMERICA, INC.
