CVTF Cooler (With Warmer Feature) Side

WARNING: This page is about a different variant/trim than selected.
  1. Install a gasket to thermostat.
    NOTE: Use a new gasket.
  2. Install the thermostat and thermostat cover.
    NOTE: Install the parts with the air vent hole facing upward.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

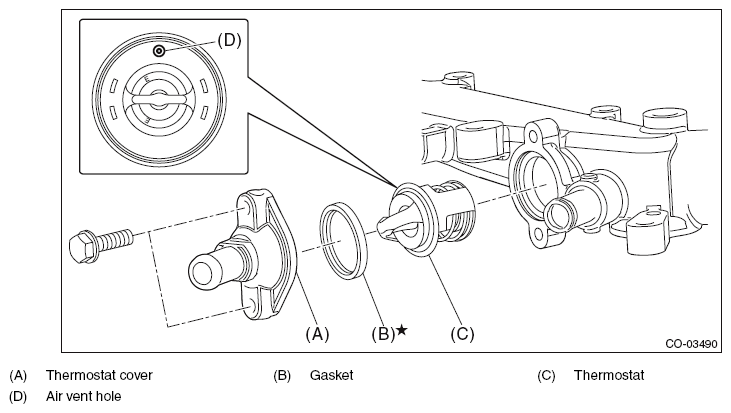

    Fig 1: Thermostat, Cover, Gasket And Air Vent Hole
    G11566796Courtesy of SUBARU OF AMERICA, INC.
  3. Connect the engine coolant hose to the thermostat cover.

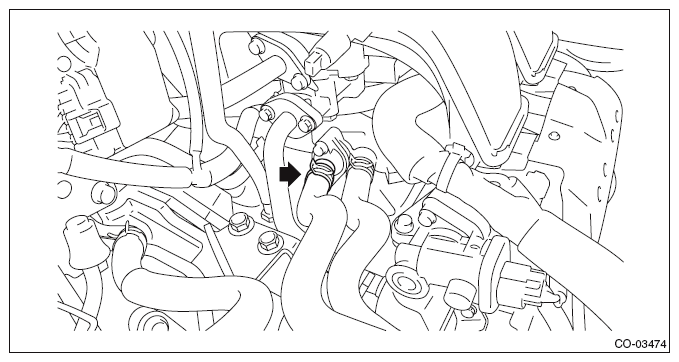

    Fig 2: Identifying Engine Coolant Hose Clamp
    G10263003Courtesy of SUBARU OF AMERICA, INC.
  4. Install the air intake boot. Ref. to INSTALLATION , Air Intake Boot.
  5. Fill engine coolant. Ref. to FILLING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant.
