Radiator Main Fan And Main Fan Motor

WARNING: This page is about a different variant/trim than selected.
  1. Disengage the clip securing the connector of the radiator main fan motor to the radiator fan shroud, and remove the radiator main fan motor harness from the clips (A).

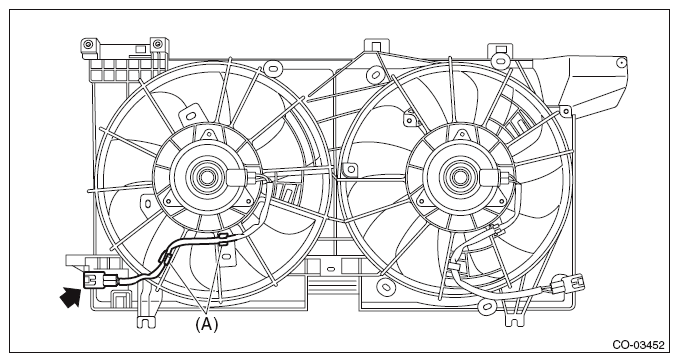

    Fig 1: Identifying Radiator Main Fan Motor Connector
    G10263040Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the radiator main fan from the radiator main fan motor.

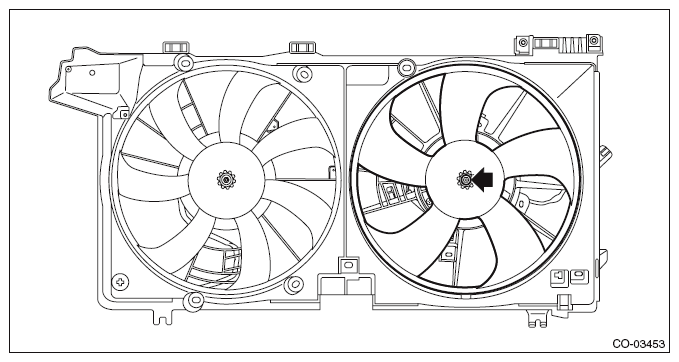

    Fig 2: Identifying Radiator Main Fan Motor
    G10263041Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the radiator main fan motor from the radiator fan shroud.

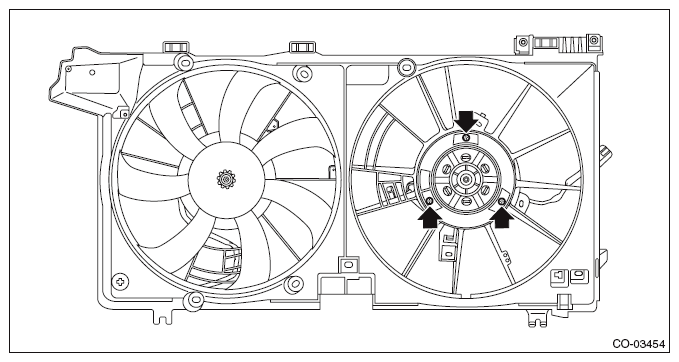

Fig 3: Identifying Radiator Main Fan Motor Screws
G10263042Courtesy of SUBARU OF AMERICA, INC.
