Active Grille Shutter: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground terminal from battery sensor. Ref. to BATTERY
NOTE: Repair Contents.
Remove the front bumper. Ref. to REMOVAL , Front Bumper.
Disconnect the connector from ambient sensor.

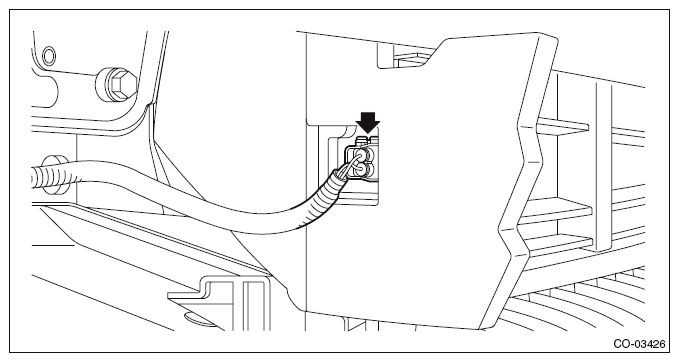

Fig 1: Identifying Ambient Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the active grille shutter actuator.

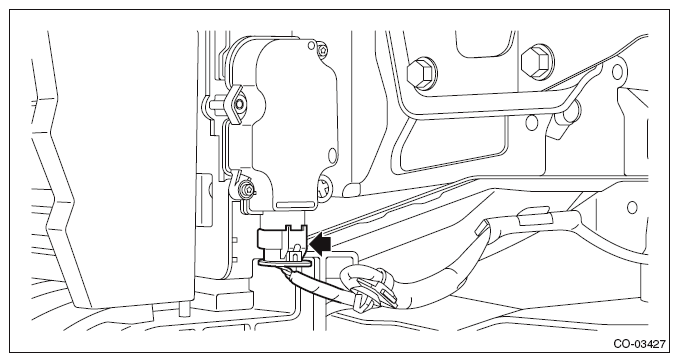

Fig 2: Identifying Active Grille Shutter Actuator Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts securing the active grille shutter to remove the active grille shutter.

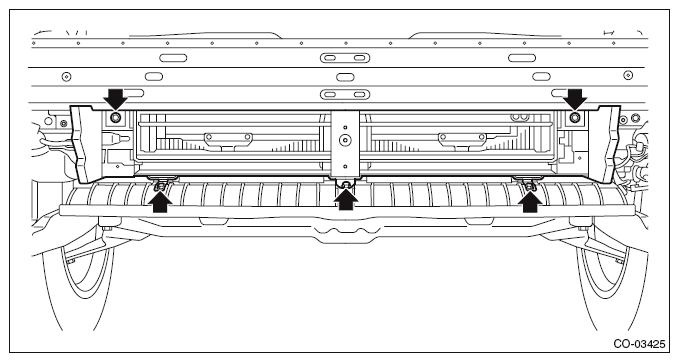

Fig 3: Identifying Active Grille Shutter Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the clip (A) to remove the ambient sensor.

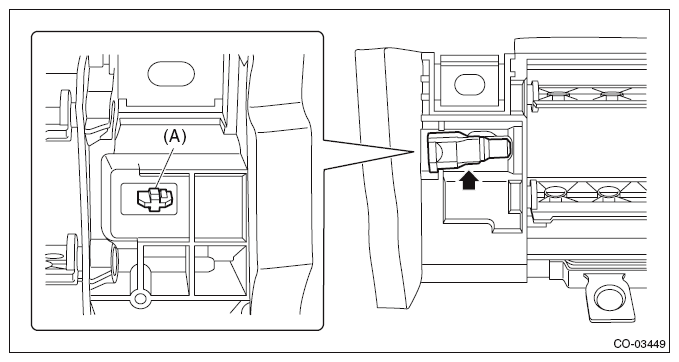

Fig 4: Identifying Ambient Sensor Clip
