Air Cleaner Element: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground terminal from battery sensor. Ref. to BATTERY
Remove the air intake duct. Ref. to REMOVAL , Air Intake Duct.
Disconnect the connector (A) from the mass air flow and intake air temperature sensor, and remove the clip (B) from the air cleaner case (rear).

Fig 1: Mass Air Flow And Intake Air Temperature Sensor Connector Clip
Courtesy of SUBARU OF AMERICA, INC.
Loosen the clamp (A) securing the air intake boot to the air cleaner case (rear), and then remove the clip (B) from the air cleaner case (front).

Fig 2: Air Intake Boot Clamp And Clip
Courtesy of SUBARU OF AMERICA, INC.

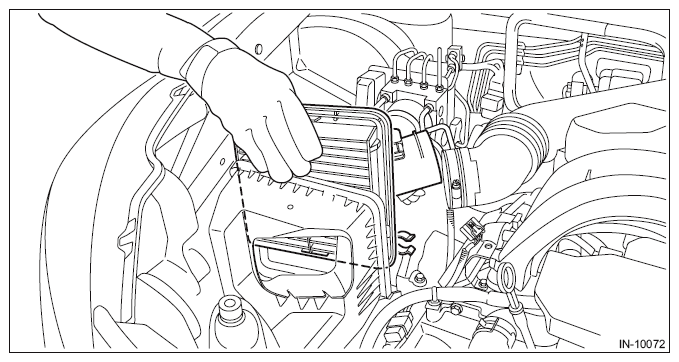

Remove the air cleaner case (rear) and air cleaner element.

Fig 3: Removing Air Cleaner Case (Rear) And Air Cleaner

Courtesy of SUBARU OF AMERICA, INC.
