Crankshaft Position, Camshaft Position And Knock Sensors

WARNING: This page is about a different variant/trim than selected.

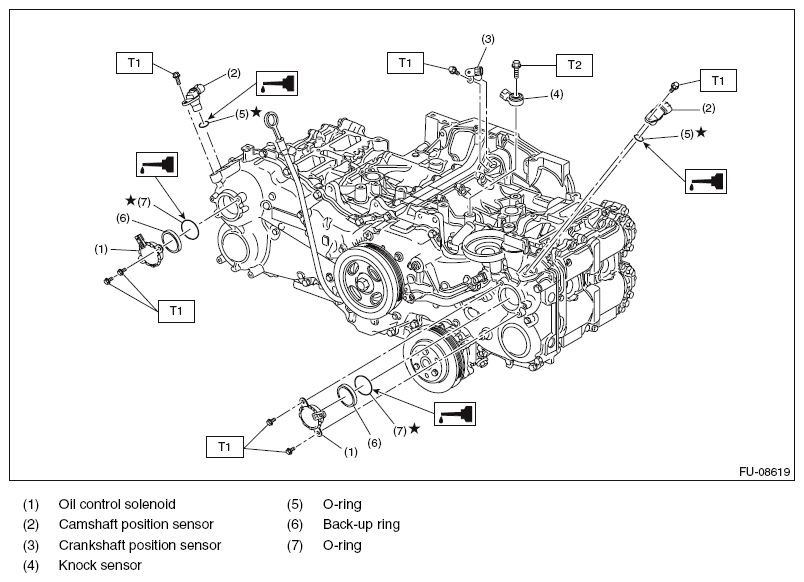

Fig 1: Crankshaft /Camshaft Position And Knock Sensors Replacement Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 25 (2.5, 18.4)
