Oil Pressure Switch: Removal
WARNING: This page is about a different variant/trim than selected.
CAUTION:
If the engine oil is spilt over exhaust pipe or the under cover, wipe it off with cloth to avoid emission of smoke or causing a fire.
- Disconnect the ground terminal from battery sensor. Ref. to BATTERY

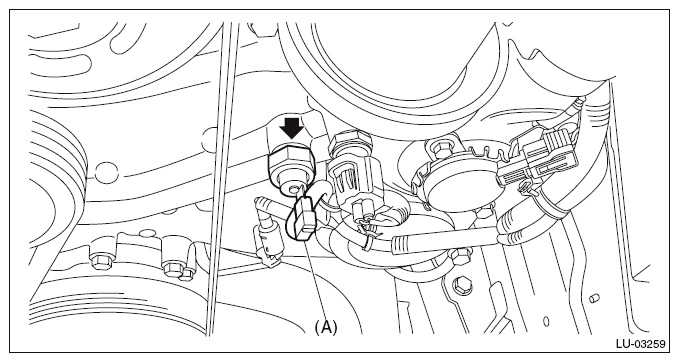

- Disconnect the connector (A) from the oil pressure switch, and remove the oil pressure switch from the chain cover.
CAUTION:
Catch the engine oil using cloth to prevent it from splashing.
