Oil Pan And Strainer

WARNING: This page is about a different variant/trim than selected.

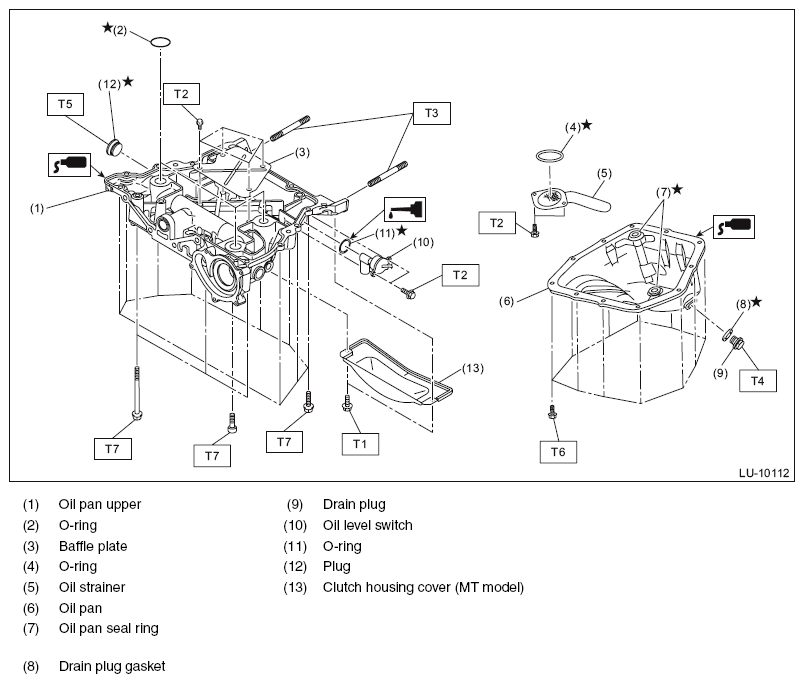

Fig 1: Exploded View Of Oil Pan And Strainer

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5 (0.5, 3.7)

T2: 6.4 (0.7, 4.7)

T3: 10 (1.0, 7.4)

T4: 41.7 (4.3, 30.8)

T5: 90 (9.2, 66.4)

T6: Ref. to OIL PAN , INSTALLATION, Oil Pan.

T7: Ref. to OIL PAN UPPER , INSTALLATION, Oil Pan.
