Transmission Rear CROSSMEMBER And Rear Cushion Rubber
WARNING: This page is about a different variant/trim than selected.
- Attach the rear cushion rubber to the transmission.
Tightening torque:
40 N.m (4.1 kgf-m, 29.5 ft-lb)

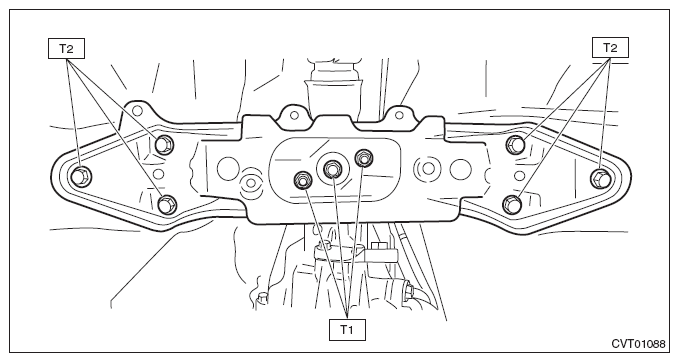

- Install the crossmember.
Tightening torque:
T1: 35 N.m (3.6 kgf-m, 25.8 ft-lb)
T2: 75 N.m (7.6 kgf-m, 55.3 ft-lb)
- Remove the transmission jack.
- Install the center exhaust cover.
Tightening torque:
18 N.m (1.8 kgf-m, 13.3 ft-lb)
- Install the center exhaust pipe. <Ref. to INSTALLATION , Center Exhaust Pipe.>
- Connect the ground terminal to battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
