Transmission Case: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove the oil stopper plate.

Fig 1: Locating Oil Stopper Plate Bolts
Courtesy of SUBARU OF AMERICA, INC.

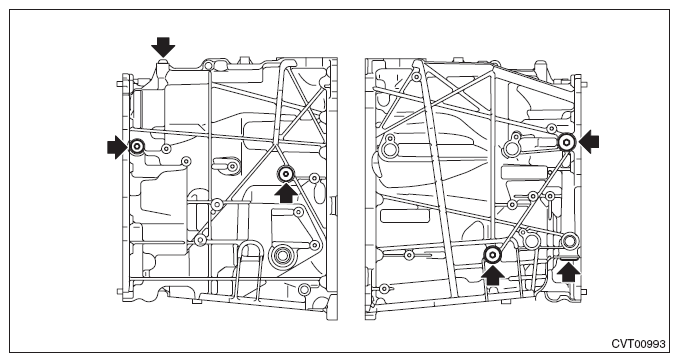

Remove all plugs from the transmission case.

Fig 2: Locating Transmission Case Plugs
Courtesy of SUBARU OF AMERICA, INC.
Remove the oil seal using a screwdriver wrapped with cloth etc.

Fig 3: Removing Oil Seal Using Screwdriver
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, remove the ball bearing of the secondary pulley.

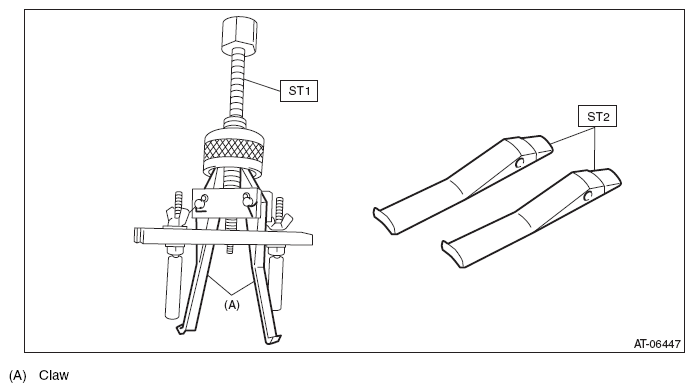

1. Remove the claw of ST1, and attach the claw of ST2.
  ST1 398527700 PULLER ASSY

  ST2 18760AA000 CLAW

  Fig 4: Removing Ball Bearing Of Secondary Pulley Using Puller Assy (398527700) And Claw (18760AA000)
  Courtesy of SUBARU OF AMERICA, INC.
2. Using the ST, remove the ball bearing of the secondary pulley.
ST1 398527700 PULLER ASSY

ST2 18760AA000 CLAW

Fig 5: Removing Ball Bearing Secondary Pulley Using Puller Assy (398527700) And Claw (18760AA000)
Courtesy of SUBARU OF AMERICA, INC.
Remove the oil guide.

Fig 6: Oil Guide
Courtesy of SUBARU OF AMERICA, INC.
Remove the ball bearing from reduction driven gear using ST.
ST 398527700 PULLER ASSY

Fig 7: Removing Ball Bearing From Reduction Driven Gear Using Puller Assy (398527700)
Courtesy of SUBARU OF AMERICA, INC.
Remove the CVTF filter cover and gasket.

Fig 8: CVTF Filter Cover And Gasket
Courtesy of SUBARU OF AMERICA, INC.
Remove the CVTF filter.

Fig 9: Removing CVTF Filter

Courtesy of SUBARU OF AMERICA, INC.
