Transfer Clutch: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove the snap ring, and then remove the pressure plate, drive plate and driven plate.

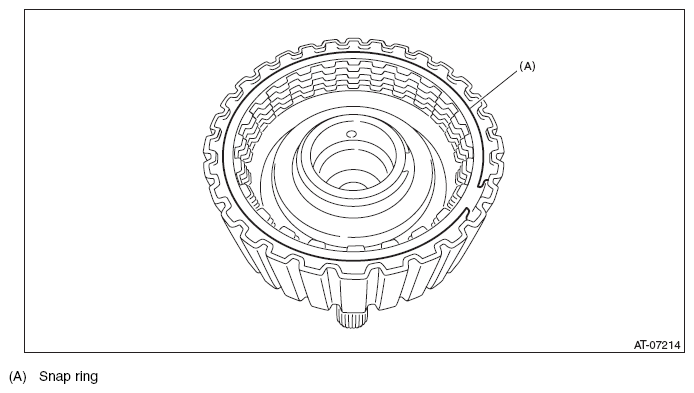

Fig 1: Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Compress the return spring using the ST to remove the snap ring.
ST 18762AA001 COMPRESSOR SPECIAL TOOL

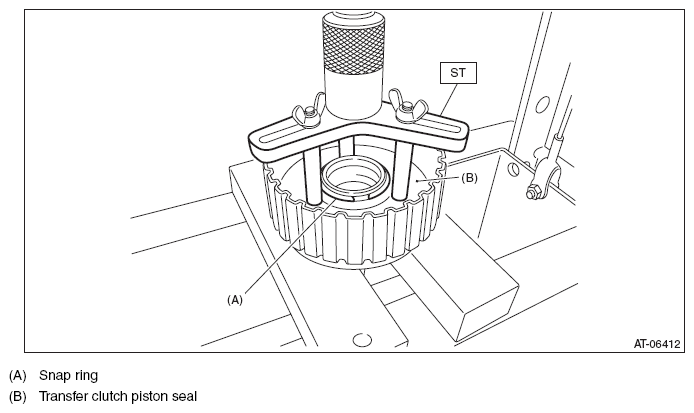

Fig 2: Compressing Return Spring Using Compression Special Tool (18762AA001)
Courtesy of SUBARU OF AMERICA, INC.
Remove the transfer clutch piston seal.
Remove the return spring.

Fig 3: Removing Return Spring
Courtesy of SUBARU OF AMERICA, INC.
Remove the transfer clutch piston by blowing compressed air through transfer clutch assembly hole.
NOTE: Plug the holes through which the compressed air is not blown.

Fig 4: Locating Transfer Clutch Assembly Hole
Courtesy of SUBARU OF AMERICA, INC.
Remove the ball bearing using ST.
ST1 18767AA010 BEARING REMOVER

ST2 18723AA000 REMOVER

Fig 5: Removing Ball Bearing Using Bearing Remover (18767AA010) And Remover (18723AA000)

Courtesy of SUBARU OF AMERICA, INC.
