Relay and Fuse: Location

WARNING: This page is about a different variant/trim than selected.

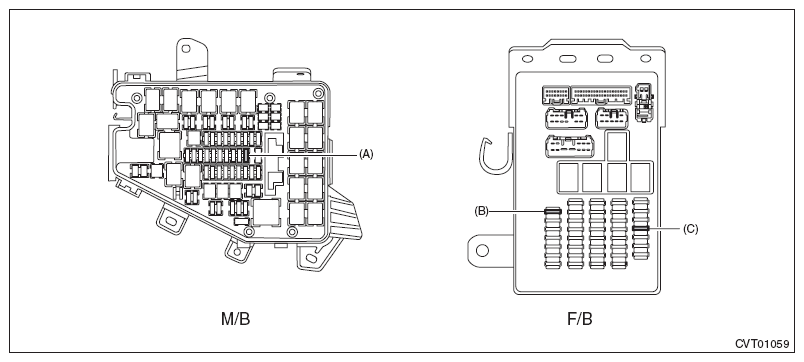

Fig 1: Relay And Fuse Box
G10275072Courtesy of SUBARU OF AMERICA, INC.
Main fuse box Fuse 20 A (A)
Relay & fuse box Fuse 15 A (B)
Relay & fuse box Fuse 7.5 A (C)
