Parking Pawl: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Set the range select lever to the "N" range.
  2. Install the parking pawl shaft, return spring and parking pawl.
    NOTE: Make sure that the end of return spring sticks out of parking pawl as shown in (a). Make sure that the other end contacts the rib of transmission case as shown in (b).

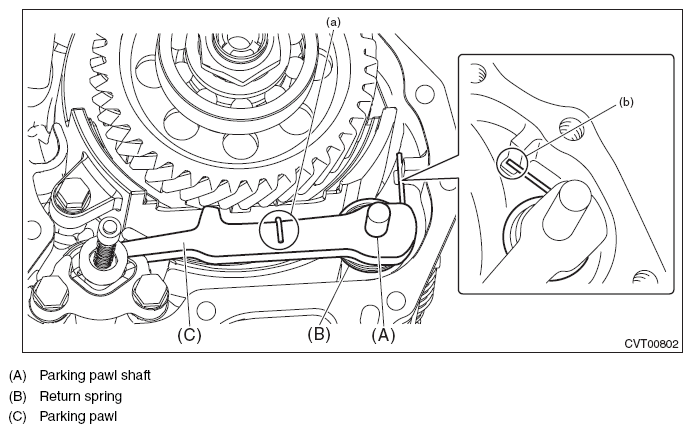

    Fig 1: Parking Pawl Shaft, Return Spring, And Parking Pawl
    G11572870Courtesy of SUBARU OF AMERICA, INC.
  3. Install the extension case. <Ref. to INSTALLATION , Extension Case.>
  4. Install the transmission assembly. <Ref. to INSTALLATION , Automatic Transmission Assembly.>
