Oil Pump: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the transmission assembly. <Ref. to
REMOVAL , Automatic Transmission Assembly.>
- Remove the torque converter assembly. <Ref. to
REMOVAL , Torque Converter Assembly.>
- Remove the oil pump chain cover. <Ref. to
REMOVAL , Oil Pump Chain.>

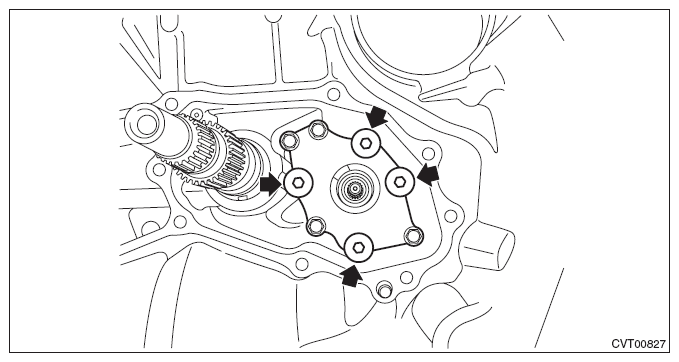

- Remove the oil pump and the plate.
Courtesy of SUBARU OF AMERICA, INC.
- Remove the O-rings.
Courtesy of SUBARU OF AMERICA, INC.
