Section 2 (Continuously Variable Transaxle (CVT) (H4DO))
>>
General Description
>>
Components With Torque Specifications
>>
Transmission Control Module
Transmission Control Module
WARNING:
This page is about a different variant/trim than selected.

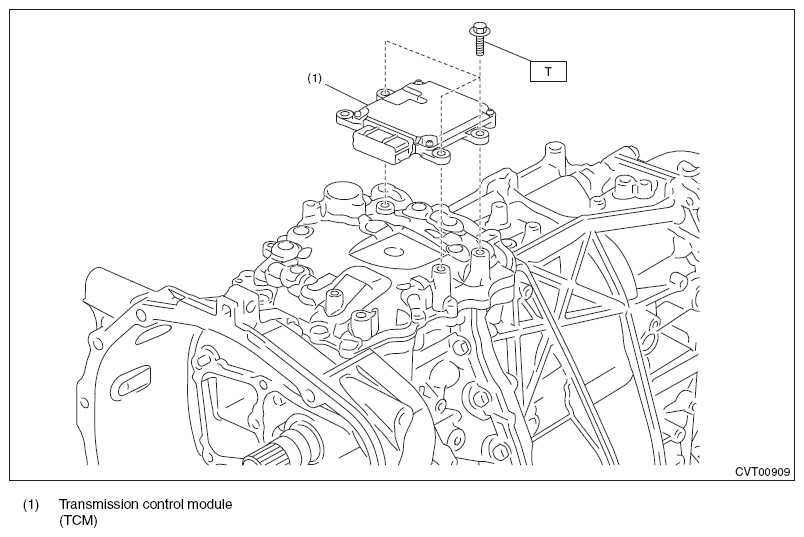

Fig 1: Transmission Control Module Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T: 7 (0.7, 5.3)
