Transmission Case

WARNING: This page is about a different variant/trim than selected.

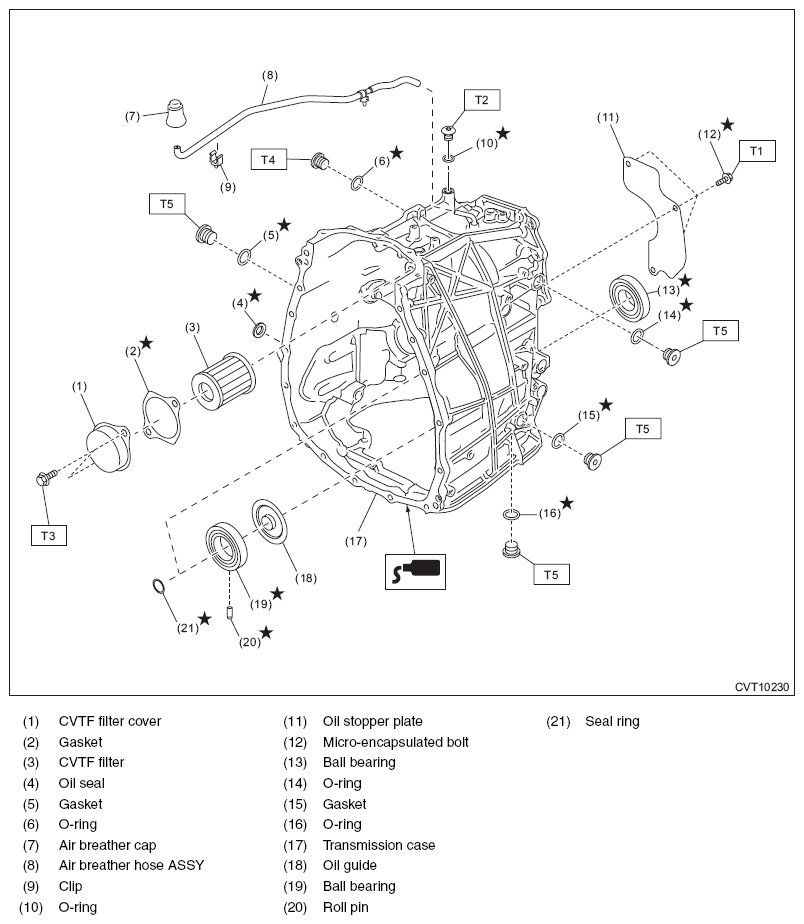

Fig 1: Transmission Case Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 9 (0.9, 6.6)

T2: 13 (1.3, 9.6)

T3: 17 (1.7, 12.5)

T4: 22 (2.2, 16.2)

T5: 50 (5.1, 36.9)
