Section 2 (Continuously Variable Transaxle (CVT) (H4DO))
>>
General Description
>>
Components With Torque Specifications
>>
Forward Clutch Assembly
Forward Clutch Assembly
WARNING:
This page is about a different variant/trim than selected.

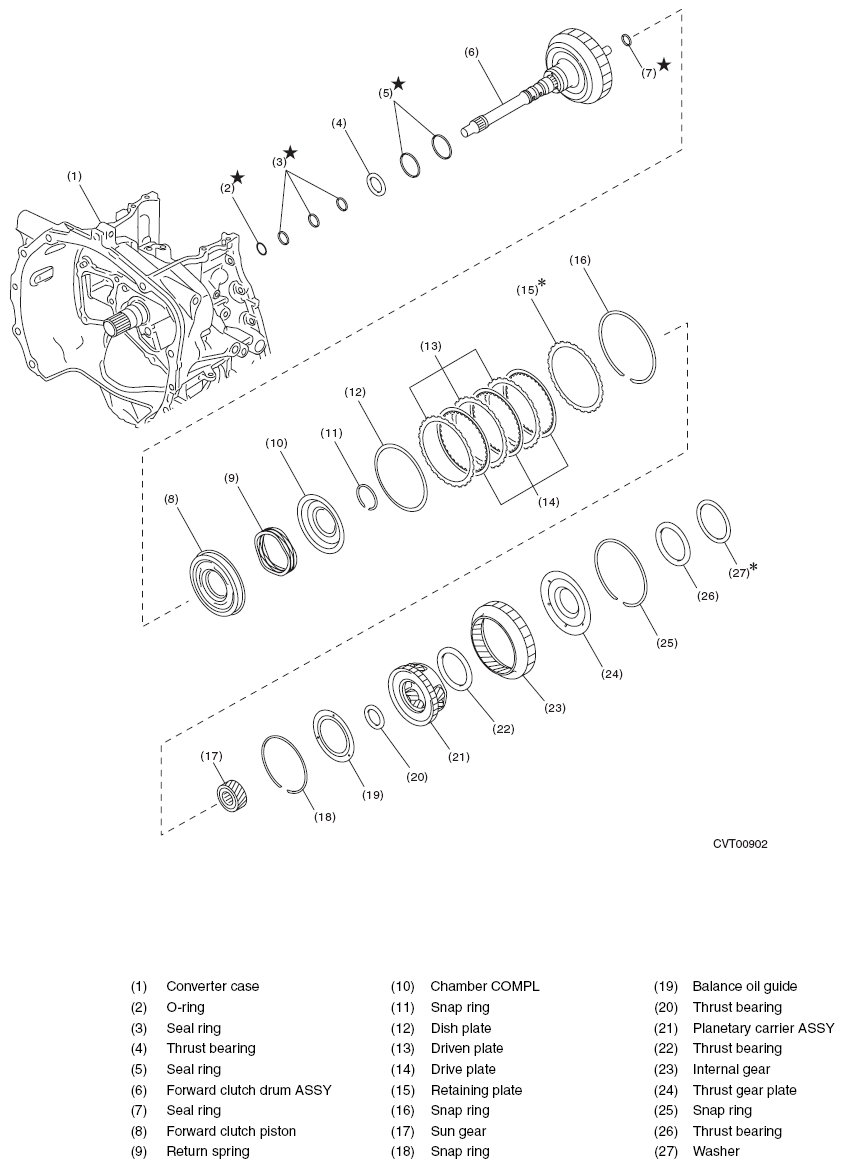

Fig 1: Forward Clutch Assembly Components
Courtesy of SUBARU OF AMERICA, INC.
