CVTF Cooler Pipe and Hose: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Immediately after the vehicle has been running or after idling for a long time, the CVTF will be hot. Be careful not to burn yourself.
  • If the CVTF is spilt over exhaust pipe, wipe it off with cloth to avoid emitting smoke or causing a fire.
  • When removing the CVTF cooler pipe assembly on vehicle side, be careful not to bend the A/C pipe.
  1. Lift up the vehicle.
  2. Remove the under cover - front.
  3. Remove the CVTF CVT inlet hose and CVTF CVT outlet hose.
    Fig 1: CVTF CVT Inlet Hose And Outlet Hose
    G10274910Courtesy of SUBARU OF AMERICA, INC.
  4. Lower the vehicle.
  5. Remove the battery and battery box. <Ref. to REMOVAL , Battery.>
  6. Remove the front bumper. <Ref. to REMOVAL , Front Bumper.>
  7. Remove the headlight assembly LH. <Ref. to REMOVAL , Headlight Assembly.>
  8. Remove the CVTF cooler (air cool) inlet hose and the CVTF cooler (air cool) outlet hose.
    Fig 2: CVTF Cooler (Air Cool) Inlet Hose And Outlet Hose
    G10275098Courtesy of SUBARU OF AMERICA, INC.

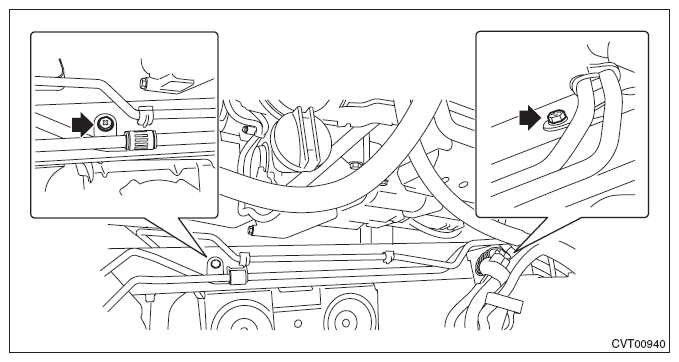

  9. Remove the CVTF cooler pipe assembly mounting bolt.
    Fig 3: Locating CVTF Cooler Pipe Assembly Mounting Bolt
    G10275099Courtesy of SUBARU OF AMERICA, INC.
  10. Detach the A/C pipe from clip.
  11. Remove the CVTF cooler pipe assembly.
  12. Remove the clip (A), and loosen the clamps (B) and (C).
    Fig 4: Air Intake Duct Clip And Clamps
    G11565902Courtesy of SUBARU OF AMERICA, INC.
  13. Remove the air intake boot assembly, and move it to the left side wheel apron.
    Fig 5: Air Intake Boot
    G11565903Courtesy of SUBARU OF AMERICA, INC.

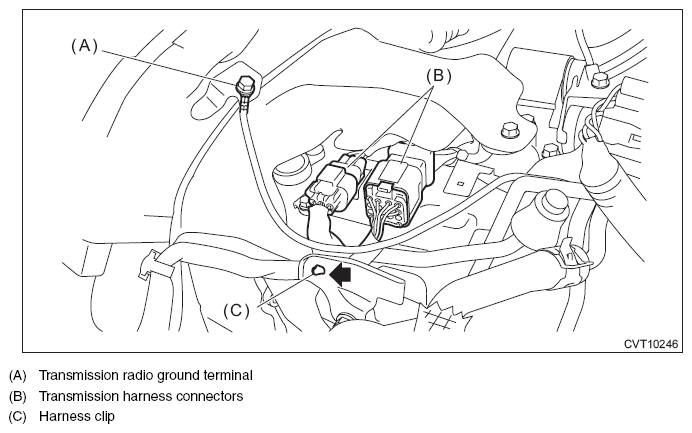

  14. Disconnect the transmission radio ground terminal and transmission harness connector, and remove the harness clip.
    Fig 6: Locating Harness Clip
    G11572802Courtesy of SUBARU OF AMERICA, INC.
  15. Remove the CVTF cooler hose.
    Fig 7: CVTF Cooler Hose
    G10274901Courtesy of SUBARU OF AMERICA, INC.

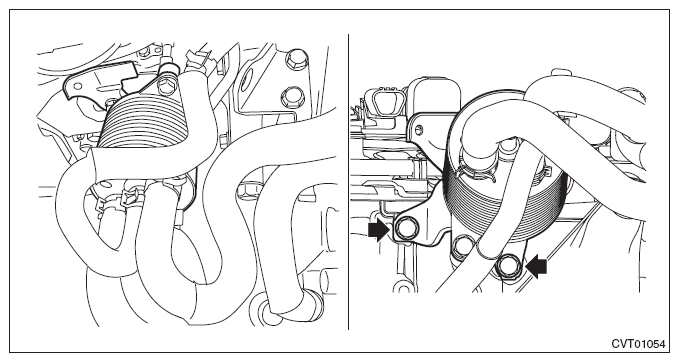

  16. Remove the CVTF cooler (with warmer feature), and fix it on the vehicle with a string.
    Fig 8: Locating CVTF Cooler (With Warmer Feature) Bolts
    G10275104Courtesy of SUBARU OF AMERICA, INC.
  17. Remove the transmission case cover.
    Fig 9: Locating Transmission Case Cover Bolts
    G11572607Courtesy of SUBARU OF AMERICA, INC.
  18. Remove the air breather hose from the transmission hanger, and remove the transmission hanger and the transmission radio ground cord.
    Fig 10: Transmission Hanger And Transmission Radio Ground Cord
    G10275023Courtesy of SUBARU OF AMERICA, INC.
  19. Remove the CVTF cooler pipe COMPL from the transmission body.

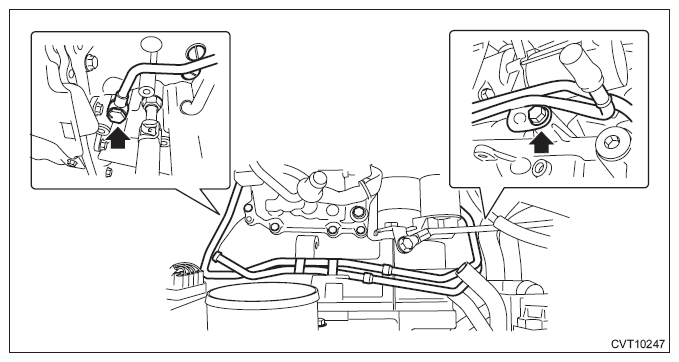

Fig 11: Locating CVTF Cooler Pipe COMPL Bolts
G11572807Courtesy of SUBARU OF AMERICA, INC.
