CVTF Cooler (With Warmer Function): Installation

WARNING: This page is about a different variant/trim than selected.

Install the CVTF cooler (with warmer feature).
Tightening torque:

23 N.m (2.3 kgf-m, 17.0 ft-lb)

Fig 1: Locating CVTF Cooler Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the engine coolant inlet hose.
NOTE: With the paint on the engine coolant inlet hose facing the vehicle outside, install the hose to the engine side pipe.

Fig 2: Locating Engine Coolant Inlet Hose Clip
Courtesy of SUBARU OF AMERICA, INC.
Install the CVTF inlet hose and CVTF outlet hose.
NOTE: Use the new CVTF inlet hose and CVTF outlet hose.
- Without CVTF cooler (air cool)
Fig 3: CVTF Inlet And Outlet Hose (Without CVTF Cooler)
Courtesy of SUBARU OF AMERICA, INC.
- With CVTF cooler (air cool)
Fig 4: CVTF Inlet And Outlet Hose (With CVTF Cooler)
Courtesy of SUBARU OF AMERICA, INC.
Connect the engine coolant outlet hose.
- Without CVTF cooler (air cool)
Fig 5: Engine Coolant Outlet Hose (Without CVTF Cooler)
Courtesy of SUBARU OF AMERICA, INC.
- With CVTF cooler (air cool)
Fig 6: Engine Coolant Outlet Hose (With CVTF Cooler)
Courtesy of SUBARU OF AMERICA, INC.
Check installation condition of each hose.
- Make sure the hoses do not interfere with each other or with other components.
- Check each hose for bent, excess curve, and twisting conditions.
- Without CVTF cooler (air cool)

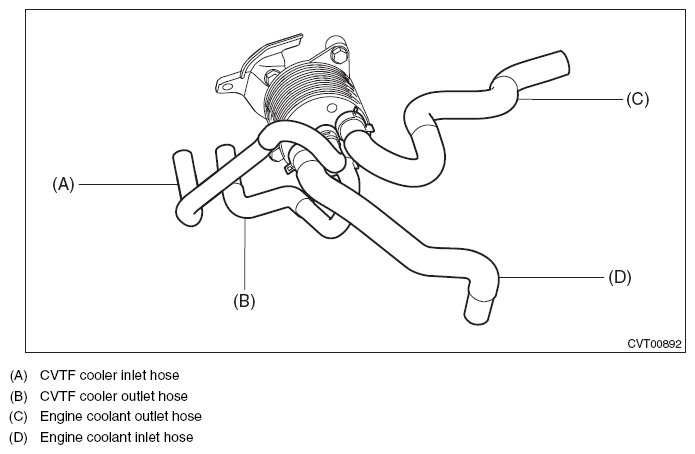

Fig 7: CVTF Cooler And Engine Coolant Inlet And Outlet Hoses (Without CVTF Cooler)
Courtesy of SUBARU OF AMERICA, INC.
- With CVTF cooler (air cool)

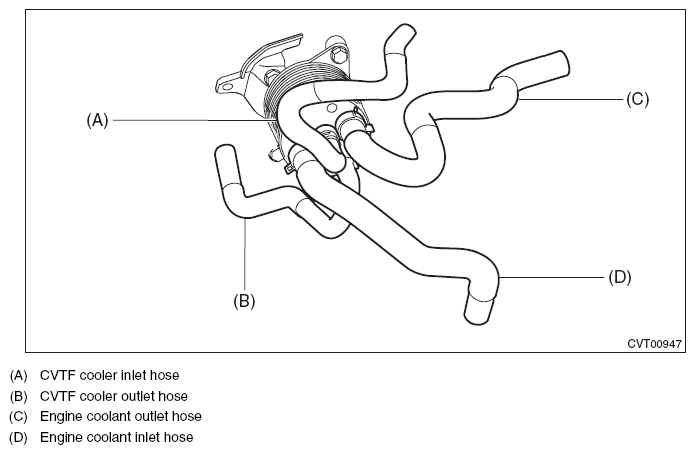

Fig 8: CVTF Cooler And Engine Coolant Inlet And Outlet Hoses (With CVTF Cooler)
Courtesy of SUBARU OF AMERICA, INC.
Install the harness clip.

Fig 9: Locating Harness Clip
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake boot assembly. <Ref. to INSTALLATION , Air Intake Boot.>
Connect the ground terminal to battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
Fill engine coolant. <Ref. to REPLACEMENT , Engine Coolant.>
Adjust the CVTF level. <Ref. to ADJUSTMENT , CVTF.>
