Transmission Case Side

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission assembly. <Ref. to REMOVAL , Automatic Transmission Assembly.>
  2. Remove the transmission case cover.
    Fig 1: Transmission Case Cover
    G10275045Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air breather hose.

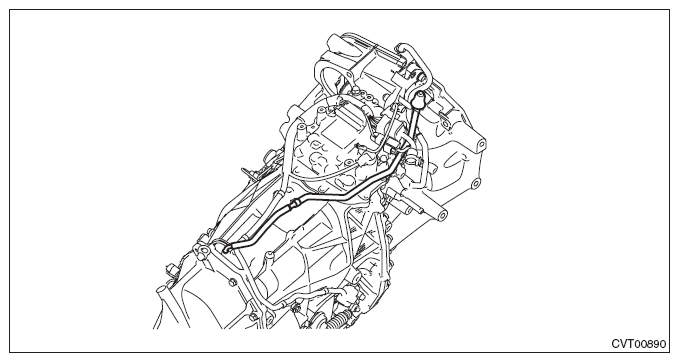

Fig 2: Air Breather Hose
G10275123Courtesy of SUBARU OF AMERICA, INC.
