Front Differential Side

WARNING: This page is about a different variant/trim than selected.

Remove the clip (A), and loosen the clamps (B) and (C).

Fig 1: Air Intake Duct Clip And Clamps
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot assembly, and move it to the left side wheel apron.

Fig 2: Air Intake Boot
Courtesy of SUBARU OF AMERICA, INC.
Remove the air breather hose.

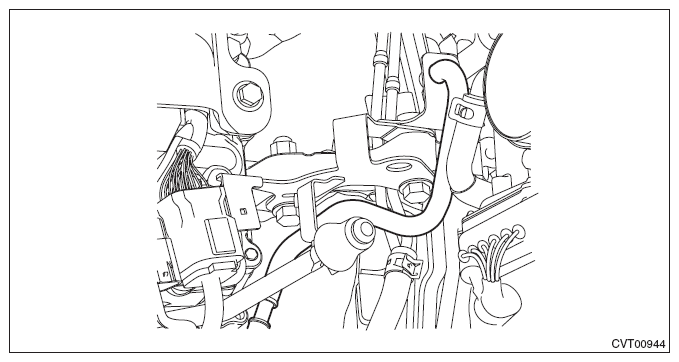

Fig 3: Air Breather Hose

Courtesy of SUBARU OF AMERICA, INC.
