Front Differential Side

WARNING: This page is about a different variant/trim than selected.
  1. Install the air breather hose.
    NOTE: Securely insert the air breather hose until the hose end contacts the catch of the transmission hanger.

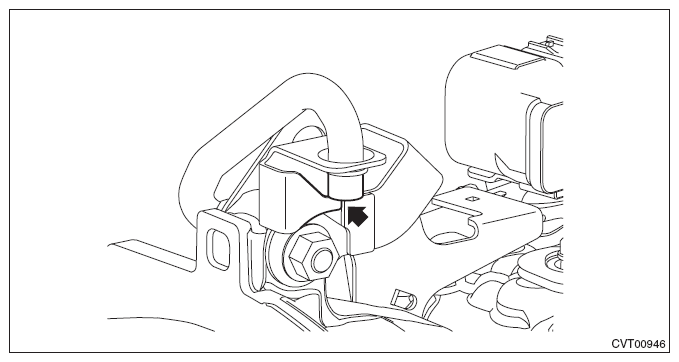

    Fig 1: Locating Catch Of Transmission Hanger
    G10275124Courtesy of SUBARU OF AMERICA, INC.
  2. Install the air intake boot assembly. <Ref. to INSTALLATION , Air Intake Boot.>
