Malfunction Criteria

WARNING: This page is about a different variant/trim than selected.

Evaporative Leak Check Module pressure (gauge) > Threshold

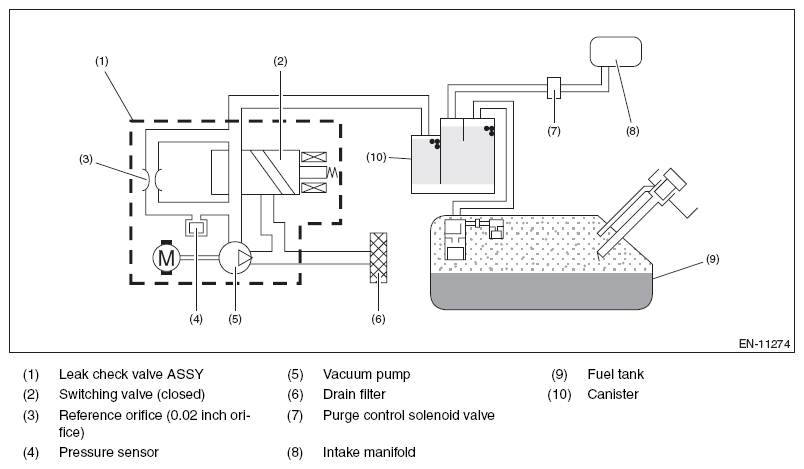

Fig 1: Evaporative Leak Check Module Pressure Sensor System Digram
G11583400Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Evaporative Leak Check Module Monitor Description
G10263444Courtesy of SUBARU OF AMERICA, INC.
