Section 13 (Engine Control System (Diagnostics) (P0171 To P0685) (H4DO))
>>
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
>>
DTC P0341: Camshaft Position Sensor "A" Circuit Range/Performance Bank 1 Or Single Sensor
>>
Component Description
Component Description
WARNING:
This page is about a different variant/trim than selected.

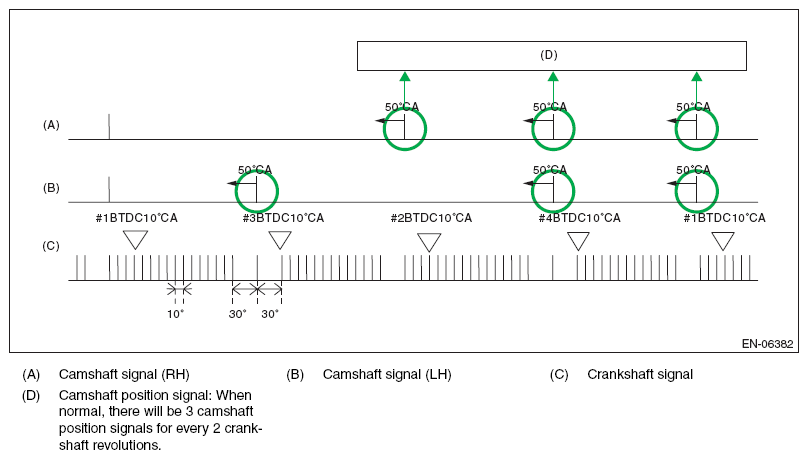

Fig 1: Camshaft Signals And Crankshaft Signals Scale
Courtesy of SUBARU OF AMERICA, INC.
