PCV System 2

WARNING: This page is about a different variant/trim than selected.

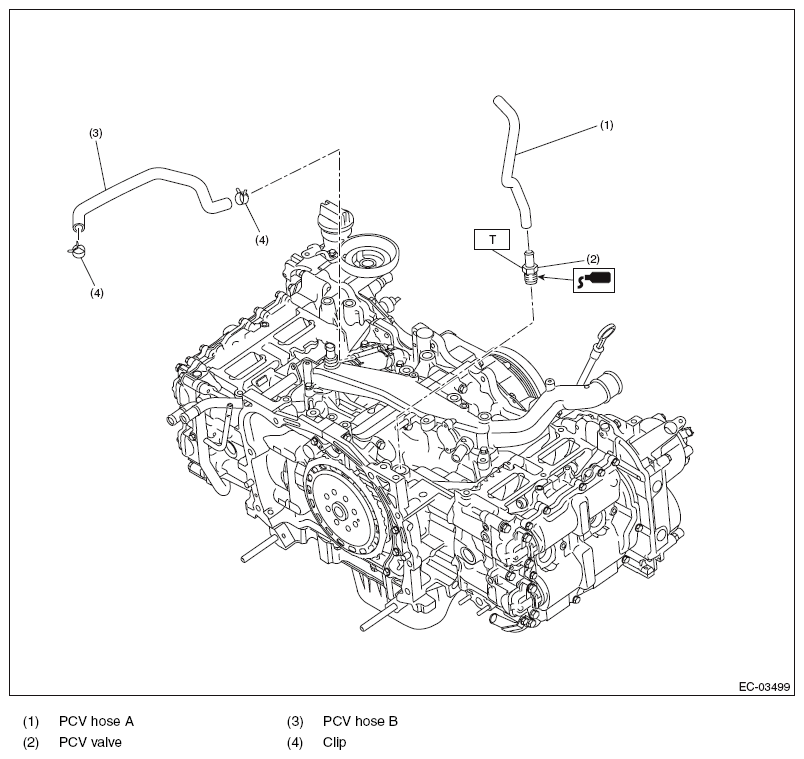

Fig 1: Exploded View Of PCV System 2 Replacement Components
G11566128Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 25 (2.5, 18.4)
