PCV System 1

WARNING: This page is about a different variant/trim than selected.

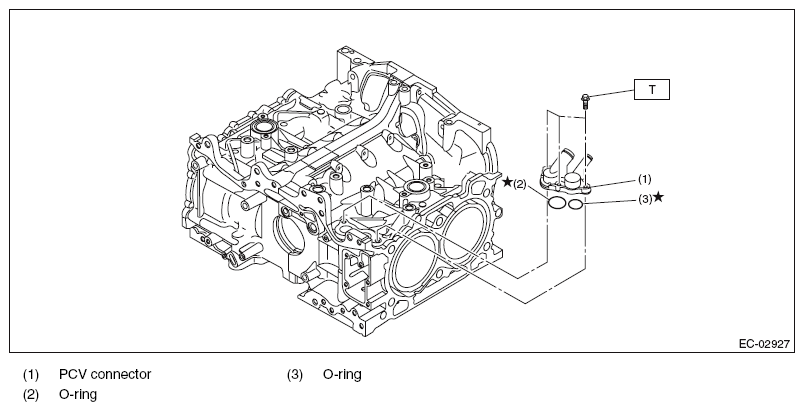

Fig 1: Exploded View Of PCV System 1 Replacement Components
G11566127Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 6.4 (0.7, 4.7)
